  11. Plate Caster, 770 lb. Load Rating, Swivel

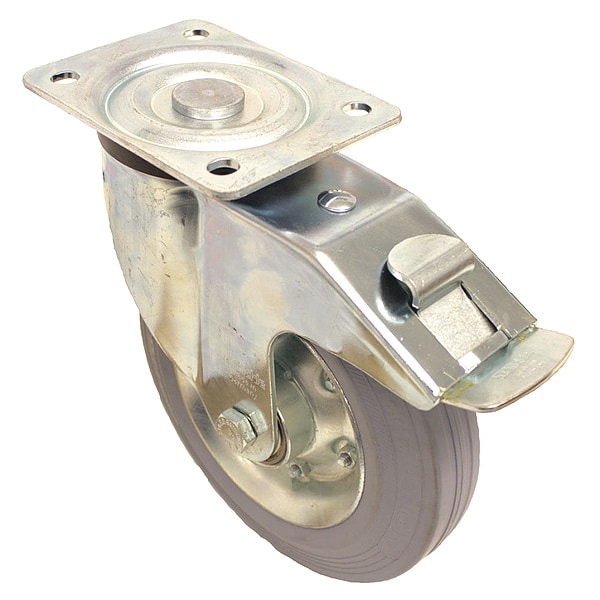

Zoro Select Plate Caster, 770 lb. Load Rating, Swivel L-RD 200K-FI-VLI - main

Plate Caster, 770 lb. Load Rating, Swivel

  • Mfr # L-RD 200K-FI-VLI

  • Zoro # G7278229

product price: $135.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
Total Lock
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-RD 200K-FI-VLI
Zoro #
G7278229
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/4 in
Mounting Plate Size
4-21/64in x 5-33/64in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
3/8 in
Swivel Radius
165 mm
Overall Height
9-1/4in
Inside Slot Spacing - Length
4.125 in
For Axle Dia.
12 mm
Outside Slot Spacing - Width
3.156 in
Mounting Plate Length
4 5/16 in
Inside Slot Spacing - Width
2.969 in
Outside Slot Spacing - Length
4.125 in
Overall Wheel Width
2 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
Total Lock
Load Rating
770 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
58 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
D
Includes
Stop-Fix Total-Lock Brake
Wheel Color
Gray
Caster Temp. Range Available
Yes
Caster Brake Included
Yes
Extended Lead
No
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial
Thread Guards
No
Features
Two Component Solid Rubber Tire
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. RD 200/20K-VLI
Operating Temperature Range
-25 Degrees To 80 Degrees C
Swivel Lock Type
No Lock Included
Wheel Core Material
Steel
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Swivel Construction
Kingpin
Tread Color
Gray
Accessories
Optional: RI-05.03 (Directional Lock)
ESD Conductive
No
Load Capacity
350 kg
Tread
Ribbed
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
L Series
Load Capacity - Maximum
770 lb
Mounting Plate Shape
Rectangle
Brake Location
Rear
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 770 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
