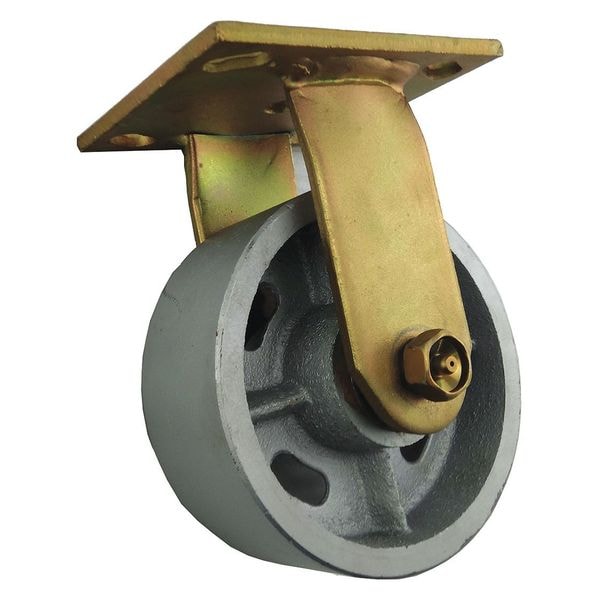

Zoro Select Rigid Plate Caster, Cast Iron, 4in, 1000 lb 33H770 - main

Rigid Plate Caster, Cast Iron, 4in, 1000 lb

  • Mfr # 33H770

  • Zoro # G4560446

product price:  $30.89
/ea

Key Features

Wheel Color
Gray
Wheel Width
2 in
Extended Lead
No
Caster Frame Material
Steel
Load Rating
1000 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
33H770
Zoro #
G4560446
UPC #
190735900420
Country of Origin
China

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
4 in
Overall Height
5-5/8in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
5 5/8 in
Mounting Plate Thickness
1/4in

Details

Wheel Color
Gray
Item
Plate Caster
Extended Lead
No
Caster Frame Material
Steel
Load Rating
1000 lb
Caster Brake Included
No
Thread Guards
No
Frame Finish
Zinc Chromate
Replacement Wheel
Mfr. No. CA0420112G
Caster Temp. Range Available
Yes
Core Color
Gray
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Rigid
Non-Marking
Yes
Caster Plate Hole Pattern
B
Number of Wheels
1
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Iron
Tread Shape
Standard
Number of Mounting Holes
4
Swivel Construction
Kingpinless
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Wheel/Tread Color
Gray
System of Measurement
Inch
Compatible With
CA0420112G
Load Capacity - Maximum
1,000 lb
Operating Temperature - Maximum
800 Degrees F
Operating Temperature Range
Up to 800 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
