  11. Plate Caster, 800 lb. Load Rating

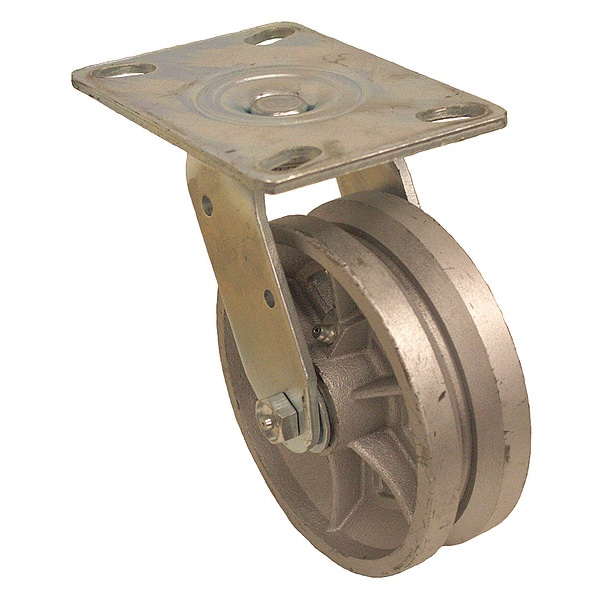

Zoro Select Plate Caster, 800 lb. Load Rating P21S-C050R-16-VG1 - main

Plate Caster, 800 lb. Load Rating

  • Mfr # P21S-C050R-16-VG1

  • Zoro # G5780523

product price: $61.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-C050R-16-VG1
Zoro #
G5780523
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4-1/2in x 6-1/4in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4-3/16 in
Overall Height
6-1/2in
Recommended Track Size
1-1/2 in x 1-1/2 in; 1/4 in x 1/4 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
800 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel Hardness Rating
180-220 BHN
Number of Mounting Holes
4
Tread Shape
V-Groove
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Frame Finish
Zinc Plated
Features
Angle Track Compatible
Replacement Wheel
Mfr. No. P-C-050x020/050R-VG1
Extended Lead
No
Standards
RoHS, ICWM, NSF
Caster Temp. Range Available
Yes
Wheel Color
Silver
Application
Retail, Industrial, Commercial
Caster Brake Included
No
Thread Guards
No
Clearance on 1-1/4" Track
7/16 in
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Clearance on 1-1/2" Track
5/8 in
Load Rating Range
Light-Medium Duty
Swivel Raceway Type
Double Ball
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Tread Color
Silver
ESD Conductive
No
Accessories
Optional: P-DL21-16 (Directional Lock) (Directional Lock)
Series
P21 Series
Load Capacity
1000 lb
Compatible With
P-C-050X020/050R-VG1
Load Capacity - Maximum
1,000 lb
Wheel Bearing Material
Steel
Wheel Core Type
Solid
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
Up To 800 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
