  6. Plate Caster, Rigid, Nylon, 4 in., 330 lb.

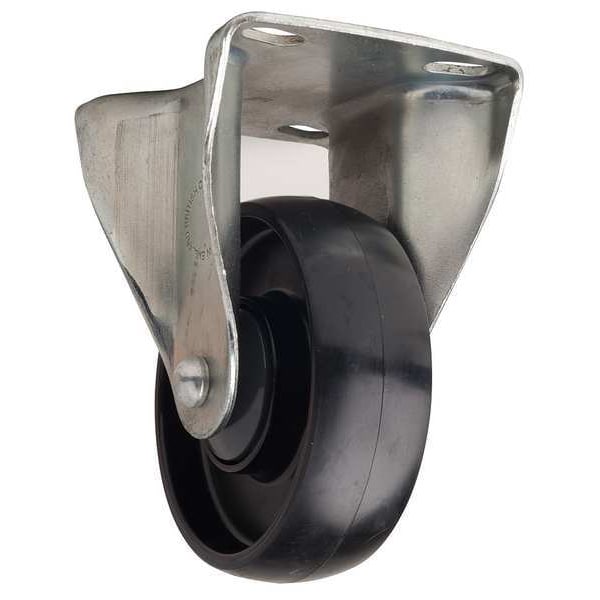

Zoro Select Plate Caster, Rigid, Nylon, 4 in., 330 lb. TFSV 100 BN0S - main

Plate Caster, Rigid, Nylon, 4 in., 330 lb.

  • Mfr # TFSV 100 BN0S

  • Zoro # G4396612

product price:  $12.15
/ea

Key Features

Thread Guards
No
Number of Wheels
1
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Wheel Width
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TFSV 100 BN0S
Zoro #
G4396612
UPC #
-
Country of Origin
United Kingdom

Dimensions

Wheel Width
1 1/4 in
Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Overall Height
5in
Mounting Height
5 in
Mounting Plate Size
3 1/8 in x 4 in
Outside Slot Spacing - Width
2.375 in
Mounting Plate Thickness
3/32 in
Mounting Plate Length
4 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
8 mm
Mounting Plate Width
3 1/8 in
Overall Wheel Width
35 mm
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.188 in

Details

Thread Guards
No
Number of Wheels
1
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Caster Temp. Range Available
Yes
Wheel Color
Black
Non-Marking
Yes
Core Color
Black
Frame Finish
Zinc Plated
Item
Plate Caster
Caster Brake Included
No
Outside Bolt Hole Spacing
2-3/8 in x 3-3/16 in
Extended Lead
No
Application
General Purpose
Load Rating
330 lb
Caster Frame Material
Steel
Caster Sub-Type
Rigid
Standards
ANSI ICWM
Wheel Core Material
Nylon
Tread Shape
Standard
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Plain
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Number of Mounting Holes
4
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
System of Measurement
Inch
Wheel Hardness Rating
80 Shore D
Load Capacity - Maximum
330 lb
For Surface Type
Ceramic, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature - Maximum
100 Degrees F
Operating Temperature Range
14 Degrees to 104 Degrees F
Operating Temperature - Minimum
15 Degrees F

Description

Rigid, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
