  6. Plate Caster, 880 lb. Load, Black Wheel

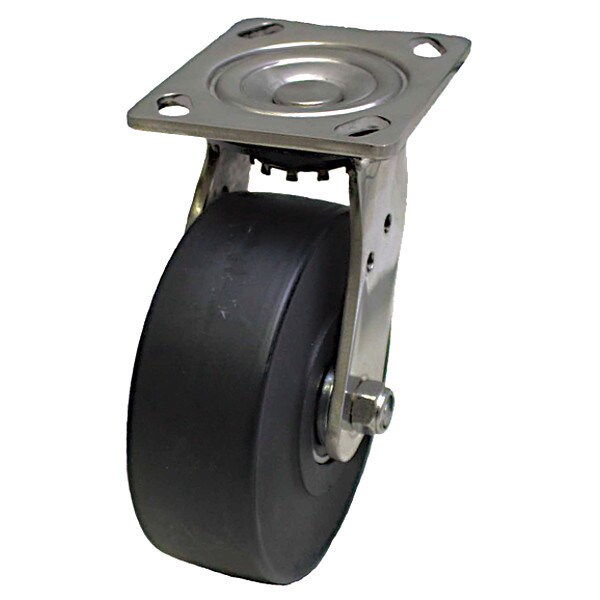

Zoro Select Plate Caster, 880 lb. Load, Black Wheel P21SX-NMB040K-14 - main

Plate Caster, 880 lb. Load, Black Wheel

  • Mfr # P21SX-NMB040K-14

  • Zoro # G1617732

product price:  $139.99
/ea
Free Shipping & Returns

Key Features

Caster Temp. Range Available
Yes
Overall Height
5-5/8in
Standards
ANSI ICWM
Replacement Wheel
Mfr. No. P-NMB-040x020/050K
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21SX-NMB040K-14
Zoro #
G1617732
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-5/8in
Swivel Radius
3-3/8 in
Wheel Width
2 in
Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in
Mounting Plate Thickness
15/64in
Inside Slot Spacing - Width
2.625 in

Details

Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Replacement Wheel
Mfr. No. P-NMB-040x020/050K
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Includes
Complete Caster
Number of Wheels
1
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Plate Hole Pattern
B
Wheel Color
Black
Caster Frame Material
Stainless Steel
Extended Lead
No
Caster Brake Included
No
System of Measurement
Inch
Frame Finish
Polished
Item
Swivel Caster
Thread Guards
No
Non-Marking
Yes
Load Rating
880 lb
Core Color
Black
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Type
No Brake
Caster Sub-Type
Swivel
Features
Corrosion Resistance
Number of Mounting Holes
4
Tread Shape
Standard
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Wheel Bearing Type
Ball
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Tread
Standard
Series
P21X Series
Load Capacity
880 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: P-DL21X-14 (Directional Lock)
Tread Color
Black
Caster Mounting Type
Plate
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
80 Shore D
Compatible With
P-NMB-040X020/050K
Load Capacity - Maximum
880 lb
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees To 250 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 880 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
