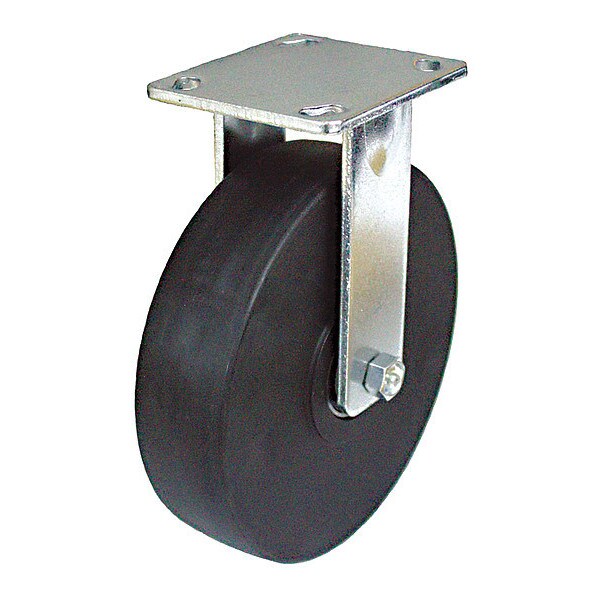

Plate Caster, 880 lb. Load, Black Wheel

  • Mfr # P21RX-NMB040K-14

  • Zoro # G1617452

product price:
$
133.99
/ea
Free Shipping & Returns

Key Features

Frame Finish
Polished
Standards
ANSI ICWM
Caster Brake Included
No
Extended Lead
No
Caster Brake Type
No Brake
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21RX-NMB040K-14
Zoro #
G1617452
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Overall Height
5-5/8"
Mounting Bolt Dia.
3/8 in
Swivel Radius
None- Rigid Caster
Wheel Dia.
4 in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 in
Overall Wheel Width
2 in
Mounting Plate Thickness
7/32 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in

Details

Frame Finish
Polished
Item
Plate Caster
Standards
ANSI ICWM
Caster Brake Included
No
Extended Lead
No
Caster Brake Type
No Brake
Number of Wheels
1
Caster Sub-Type
Rigid
Features
Corrosion Resistance
Load Rating
880 lb
Thread Guards
No
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
B
System of Measurement
Inch
Caster Frame Material
Stainless Steel
Non-Marking
Yes
Core Color
Black
Replacement Wheel
Mfr. No. P-NMB-040X020/050K
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Wheel Color
Black
Includes
Complete Caster
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Nylon
Wheel Bearing Type
Ball
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Load Capacity
880 lb
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Series
P21X Series
ESD Conductive
No
Tread
Standard
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
880 lb
Compatible With
P-NMB-040X020/050K
Wheel Hardness Rating
80 Shore D
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees To 250 Degrees F

Description

Rigid, Plate Caster, Load Rating 880 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
