  6. Plate Caster, Rigid, Rubber, 8 1/2"H

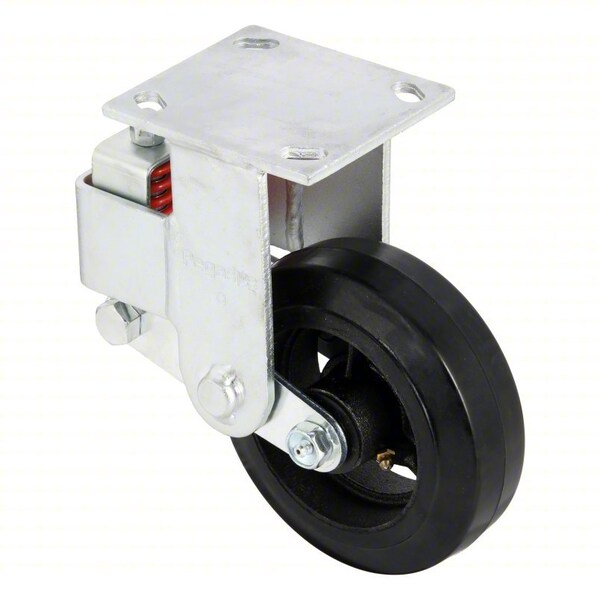

Zoro Select Plate Caster, Rigid, Rubber, 8 1/2"H P22R-RY060R-14 - main

Plate Caster, Rigid, Rubber, 8 1/2"H

  • Mfr # P22R-RY060R-14

  • Zoro # G3779630

product price:  $165.99
/ea
Free Shipping & Returns

Key Features

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Bearing Type
Roller
Load Rating
410 lb
Wheel Width
2 in
Inside Bolt Hole Spacing
3 in x 3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P22R-RY060R-14
Zoro #
G3779630
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Overall Height
8-1/2in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
8 1/2 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 in
Outside Slot Spacing - Width
3 in

Details

Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Wheel Bearing Type
Roller
Load Rating
410 lb
Inside Bolt Hole Spacing
3 in x 3 in
Extended Lead
No
Operating Temperature Range
-40 Degrees To 180 Degrees F
Tread Color
Black
Core Color
Gray
Features
Floor Protection, Noise Reduction, Shock Absorption
Load Capacity
500 lb
Replacement Wheel
Mfr. No. P-RY-060x020/050R
Caster Frame Material
Steel
Wheel Core Material
Cast Iron
Caster Sub-Type
Rigid
Wheel/Tread Material
Rubber
Includes Thread Guards
No
Thread Guards
No
Tread Shape
Standard
Caster Temp. Range Available
Yes
Swivel Raceway Type
Double Ball
Caster Brake Included
No
Tread
Standard
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Soft
Frame Finish
Zinc Plated
Load Rating Range
Light-Medium Duty
Wheel Color
Black
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Non-Marking
No
Item
Rigid Caster
Caster Mounting Type
Plate
Number of Wheels
1
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM
Wheel/Tread Color
Black
Series
P22 Series
ESD Conductive
No
Max. Spring Deflection
55/64 in
System of Measurement
Inch
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
500 lb
Mounting Plate Shape
Rectangle
Wheel Core Type
Spoke
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Operating Temperature - Minimum
-20 Degrees F
Maximum Compression Force
800 lb
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 410 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
