Shop ZORO SELECT

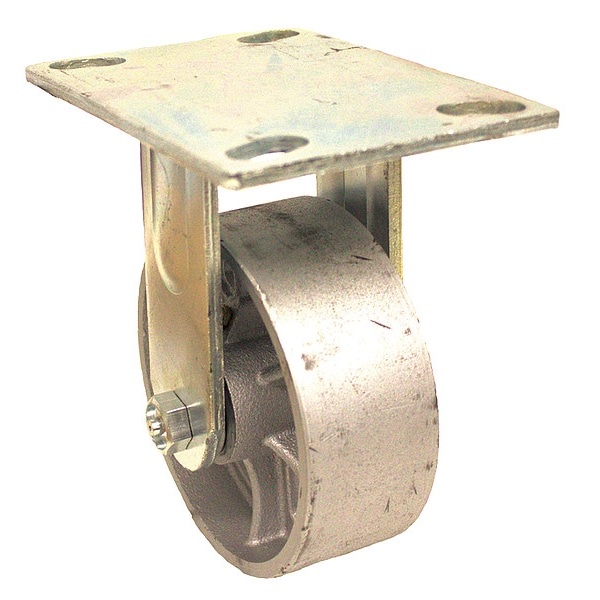

Plate Caster, Rigid, Iron, 6 1/2"H

  • Mfr # P21R-C050R-16

  • Zoro # G3575221

product price:
$
30.15
/ea

Key Features

Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Number of Wheels
1
Caster Frame Material
Steel
Extended Lead
No
Mounting Height
6 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-C050R-16
Zoro #
G3575221
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
6 1/2 in
Swivel Radius
None- Rigid Caster
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
4-1/2in x 6-1/4in
Overall Height
6-1/2"
Wheel Width
2 in
Wheel Dia.
5 in
Mounting Plate Thickness
7/32 in
Mounting Plate Width
4 1/2 in
Bolt Hole Spacing - Length
2.438 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
6 1/4 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3.375 in

Details

Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Number of Wheels
1
Caster Frame Material
Steel
Extended Lead
No
Item
Plate Caster
Replacement Wheel
Mfr. No. P-C-050X020/050R
Load Rating
1000 lb
Caster Plate Hole Pattern
A
Wheel/Tread Hardness Rating
Extra Hard
Caster Temp. Range Available
Yes
Core Color
Silver
Wheel/Tread Material
Iron
Caster Brake Included
No
Number of Mounting Holes
4
Wheel Bearing Type
Roller
Tread Shape
Standard
Frame Finish
Zinc Plated
Thread Guards
No
Caster Sub-Type
Rigid
Swivel Lock Type
No Lock Included
Caster Brake Type
No Brake
Load Rating Range
Medium-Duty
Standards
DIN EN 12532
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Tread
Standard
Caster Mounting Type
Plate
Wheel Core Material
Iron
Includes Thread Guards
No
Tread Color
Silver
Wheel Color
Silver
Load Capacity
1000 Lb.
Features
Push/Pull Force Reduction
Non-Marking
Yes
Wheel/Tread Color
Silver
System of Measurement
Inch
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
Load Capacity - Maximum
1,000 lb
Compatible With
P-C-050X020/050R
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Hardness Rating
145 HB
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
Up To 800 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
