  11. Plate Caster, Rigid, Phenolic, 3 7/8"H
Zoro Select Plate Caster, Rigid, Phenolic, 3 7/8"H P10R-PH030R-14-001 - main

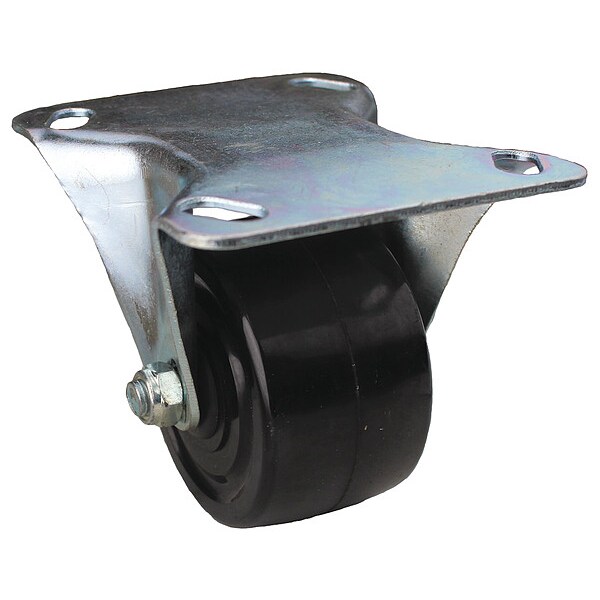

Plate Caster, Rigid, Phenolic, 3 7/8"H

  • Mfr # P10R-PH030R-14-001

  • Zoro # G2054220

product price: $22.19
/ea

Key Features

System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
3 in
Wheel Width
1 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P10R-PH030R-14-001
Zoro #
G2054220
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 3/4 in
Mounting Height
3 7/8 in
Mounting Plate Size
3 3/4 in x 4 5/8 in
Mounting Plate Thickness
1/8 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Swivel Radius
None- Rigid Caster
Overall Height
3-7/8in
Overall Wheel Width
1 3/4 in
Hub Length
1 7/8 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
102 HRE
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Standards
ANSI ICWM
Wheel Core Material
Phenolic
Application
Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
Wheel Bearing Material
Steel
Swivel Raceway Type
Single Ball
Frame Color
Silver
With Toe Plate
No
Wheel/Tread Hardness Rating
Hard
Includes Mounting Fasteners
No
Frame Finish
Zinc Plated
ESD Conductive
No
Swivel Lock Type
No Lock Included
Wheel Core Type
Solid
Includes Spanner Bushing
Yes
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Features
Low Rolling Resistance
NSF Listed
No
Series
Pegasus 10 Series
Swivel Construction
Kingpin
Swivel Bearing Seal Type
Open
Frame Construction
Stamped
Operating Temperature Range
-20 Degrees to 250 Degrees F
Load Capacity - Maximum
500 lb
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 3/4 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
