  11. Plate Caster, Rigid, Polyurethane, 7 1/4"H
Zoro Select Plate Caster, Rigid, Polyurethane, 7 1/4"H P12R-UP060D-P2 - main

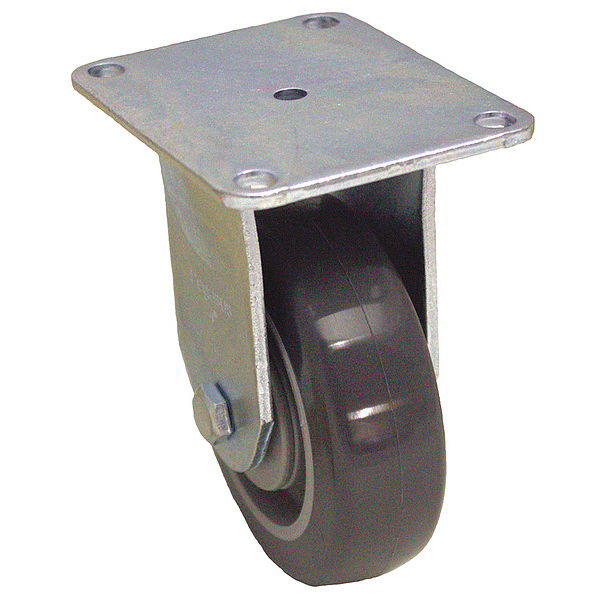

Plate Caster, Rigid, Polyurethane, 7 1/4"H

  • Mfr # P12R-UP060D-P2

  • Zoro # G3779743

product price: $26.49
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12R-UP060D-P2
Zoro #
G3779743
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/4 in
Mounting Height
7 1/4 in
Mounting Plate Size
3-1/8in x 4-1/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
7-1/4in
Swivel Radius
None- Rigid Caster
Outside Slot Spacing - Width
2.375 in
Mounting Plate Length
3 1/8 in
Inside Slot Spacing - Width
2.375 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
3.375 in
Outside Slot Spacing - Length
3.5 in
For Axle Dia.
3/8 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
325 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Wheel Hardness Rating
55 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-1/2 in
Inside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Caster Plate Hole Pattern
C
Tread Color
Gray
Load Rating Range
Light-Medium Duty
Extended Lead
No
Replacement Wheel
Mfr. No. P-UP-060x013/038D
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Standards
RoHS, ICWM, NSF
Load Capacity
325 lb
Wheel/Tread Hardness Rating
Hard
Tread
Standard
Caster Temp. Range Available
Yes
Features
Floor Protective
Thread Guards
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Wheel Core Material
Polypropylene
Frame Finish
Zinc Plated
Caster Brake Included
No
Wheel Color
Gray
Operating Temperature Range
-15 Degrees To 160 Degrees F
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P12 Series
Load Capacity - Maximum
325 lb
Wheel Bearing Material
Delrin
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Rigid, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
