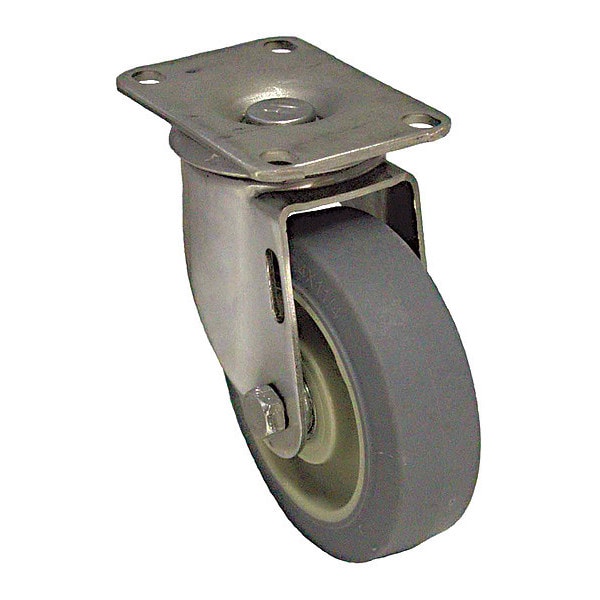

Plate Caster, 250 lb. Load, Gray Wheel

  • Mfr # P12SX-PRP035D-12
  • Zoro # G1619150
product price:
$
45.59
/ea

Key Features

Load Rating
250 lb
Wheel Dia.
3 1/2 in
Caster Plate Hole Pattern
C
Swivel Radius
3 in
System of Measurement
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12SX-PRP035D-12
Zoro #
G1619150
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 1/2 in
Swivel Radius
3 in
Overall Height
4-11/16"
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
4 11/16 in
Mounting Plate Thickness
5/32 in
Outside Slot Spacing - Length
3.063 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Width
1.75 in
Overall Wheel Width
1 1/4 in
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Width
1.75 in
Fits Chest Size
Corrosion Resistance, Floor Protective, Noise Reduction

Details

Load Rating
250 lb
Caster Plate Hole Pattern
C
System of Measurement
Inch
Replacement Wheel
Mfr. No. P-PRP-035X013/050D
Number of Wheels
1
Features
Corrosion Resistance, Floor Protective, Noise Reduction
Item
Plate Caster
Caster Frame Material
Stainless Steel
Includes
Complete Caster
Extended Lead
No
Core Color
Beige
Application
Dollies, Food Service, Hospitality, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Caster Temp. Range Available
Yes
Caster Brake Included
No
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Frame Finish
Polished
Caster Brake Type
No Brake
Wheel Color
Gray
Non-Marking
Yes
Thread Guards
No
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Tread Shape
Standard
Load Rating Range
Light-Duty
Wheel/Tread Material
Rubber
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Core Material
Polyolefin
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Series
P12X Series
Tread
Standard
Caster Mounting Type
Plate
Tread Color
Gray
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
200 lb
Caster Features
Corrosion-Resistant, Debris-Resistant
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
250 lb
Compatible With
P-PRP-035X013/050D
Wheel Bearing Material
Delrin
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
