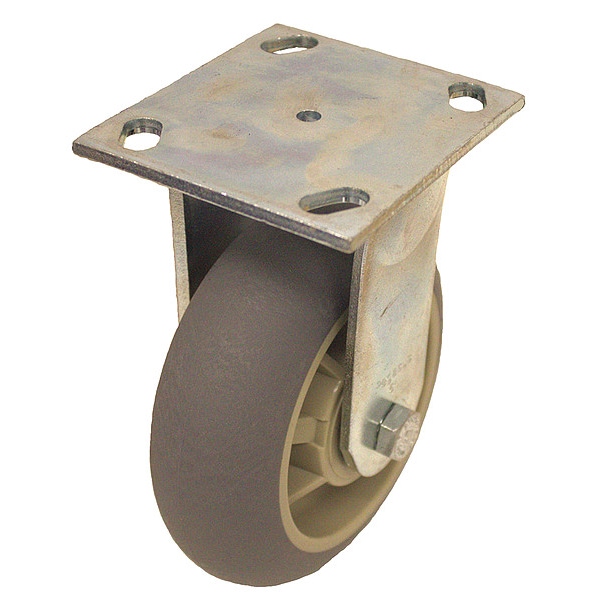

Zoro Select Plate Caster, Rigid, Rubber, 7 1/2"H P21R-RCP060KP-14 - main

Plate Caster, Rigid, Rubber, 7 1/2"H

  • Mfr # P21R-RCP060KP-14

  • Zoro # G3573009

product price:  $26.99
/ea

Key Features

Mounting Plate Size
4in x 4-1/2in
Wheel/Tread Material
Thermoplastic Rubber
Mounting Height
7 1/2 in
Caster Temp. Range Available
Yes
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-RCP060KP-14
Zoro #
G3573009
UPC #
-
Country of Origin
China

Dimensions

Mounting Plate Size
4in x 4-1/2in
Mounting Height
7 1/2 in
Wheel Dia.
6 in
Overall Height
7-1/2in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Swivel Radius
None- Rigid Caster
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in

Details

Wheel/Tread Material
Thermoplastic Rubber
Caster Temp. Range Available
Yes
Core Color
Gray
Thread Guards
No
Features
Push/Pull Force Reduction
Wheel/Tread Hardness Rating
Firm
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
B
Swivel Lock Type
No Lock Included
Caster Brake Included
No
Caster Sub-Type
Rigid
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Tread
Crowned
Load Rating Range
Light-Medium Duty
Wheel Color
Gray
Load Capacity
500 lb
Number of Wheels
1
Extended Lead
No
Standards
DIN EN 12530
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
Caster Brake Type
No Brake
Tread Color
Gray
Includes Thread Guards
No
Inside Bolt Hole Spacing
3 in x 3 in
Load Rating
500 lb
Tread Shape
Donut Tread
Item
Rigid Caster
Non-Marking
Yes
Caster Mounting Type
Plate
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Replacement Wheel
Mfr. No. P-RCP-060x020/050KP
Wheel/Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
ESD Conductive
No
System of Measurement
Inch
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
500 lb
Compatible With
P-RCP-060X020/050KP
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
