Zoro Select Plate Caster, Rigid, Rubber, 9 7/16"H P25R-SE 200K-16 - main

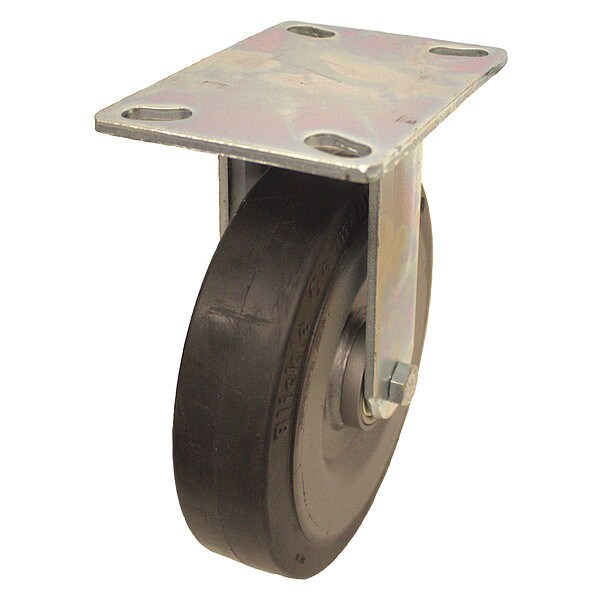

Plate Caster, Rigid, Rubber, 9 7/16"H

  • Mfr # P25R-SE 200K-16

  • Zoro # G3581969

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Hardness Rating
Soft
Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Non-Marking
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25R-SE 200K-16
Zoro #
G3581969
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
None- Rigid Caster
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Overall Height
9-1/2in
Mounting Plate Size
4-1/2in x 6-1/4in
Mounting Height
9 7/16 in
Outside Slot Spacing - Length
5.25 in
Overall Wheel Width
2 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Width
2.438 in

Details

Wheel/Tread Hardness Rating
Soft
Non-Marking
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Extended Lead
No
Caster Brake Included
No
Wheel Color
Black
Number of Wheels
1
Includes Thread Guards
No
System of Measurement
Inch
Core Color
Black
Standards
DIN EN 12532
Item
Rigid Caster
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Zinc Plated
Number of Mounting Holes
4
Caster Sub-Type
Rigid
Tread Shape
Standard
Thread Guards
No
Replacement Wheel
Mfr. No. SE 200/20K
Caster Plate Hole Pattern
A
Load Rating
1320 lb
Caster Brake Type
No Brake
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Wheel Bearing Type
Ball
Features
Noise Reduction
Caster Frame Material
Steel
Load Rating Range
Medium-Duty
Wheel/Tread Material
Rubber
Wheel Core Material
Steel
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Black
Series
P25 Series
Tread
Standard
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Black
Caster Mounting Type
Plate
ESD Conductive
No
Load Capacity
1300 lb
Wheel Hardness Rating
65 Shore A
Compatible With
SE 200/20K
Load Capacity - Maximum
1,320 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature Range
-15 Degrees To 175 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Rigid, Plate Caster, Load Rating 1320 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
