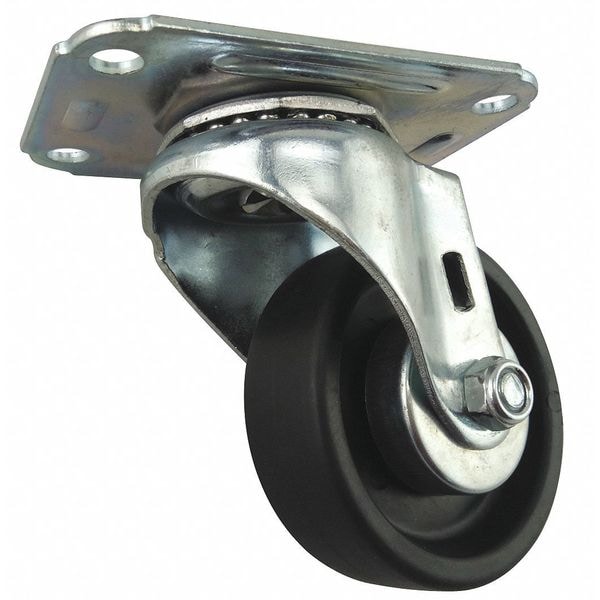

Zoro Select Plate Caster, Swivel, 125 lb., Light-Duty 426A77 - main

Plate Caster, Swivel, 125 lb., Light-Duty

  • Mfr # 426A77

  • Zoro # G5553611

product price:  $5.45
/ea

Key Features

Standards
ANSI, ANSI ICWM
Wheel Color
Black
Load Rating
125 lb
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
426A77
Zoro #
G5553611
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 in
Swivel Radius
3 3/8 in
Wheel Dia.
3 in
Overall Height
3-13/16in
Mounting Bolt Dia.
5/16 in
Mounting Height
3 13/16 in
Mounting Plate Size
2 3/4 in x 3 3/4 in
Mounting Plate Thickness
3/32in

Details

Standards
ANSI, ANSI ICWM
Wheel Color
Black
Load Rating
125 lb
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Zinc Plated
Extended Lead
No
Caster Brake Included
No
Item
Plate Caster
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Number of Wheels
1
Caster Sub-Type
Swivel
Core Color
Black
Caster Plate Hole Pattern
D
Caster Frame Material
Steel
Non-Marking
Yes
Thread Guards
Yes
Caster Brake Type
No Brake
Swivel Raceway Type
Double Ball
Includes Thread Guards
Yes
Load Rating Range
0 to 299 lb
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Plain
Number of Mounting Holes
4
Wheel Core Material
Polyolefin
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel/Tread Material
Polyolefin
Wheel/Tread Color
Black
System of Measurement
Inch
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
125 lb
Operating Temperature - Maximum
160 Degrees F
Operating Temperature Range
-15 Degrees to 160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 125 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
