Zoro Select Plate Caster, Swivel, 2 13/16"H LPA-POA 50G - main

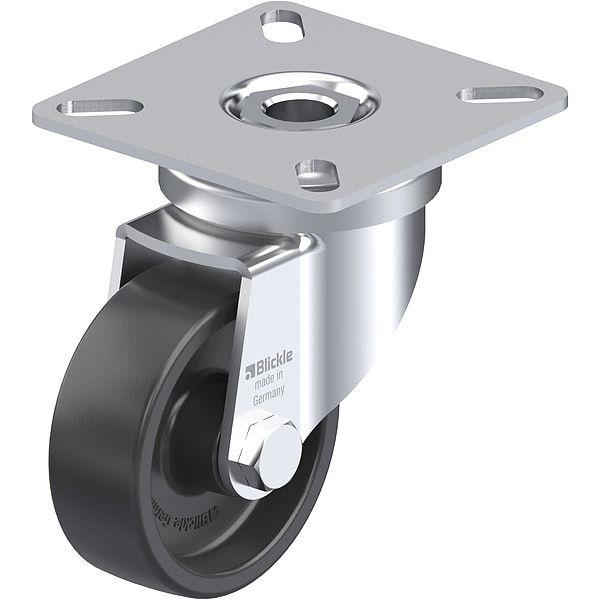

Plate Caster, Swivel, 2 13/16"H

  • Mfr # LPA-POA 50G

  • Zoro # G714811012

product price:  $13.25
/ea

Key Features

Wheel Dia.
51 mm
Wheel Width
17 mm
Mounting Height
71 mm
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LPA-POA 50G
Zoro #
G714811012
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
51 mm
Wheel Width
17 mm
Mounting Height
71 mm
Mounting Plate Thickness
2 mm
Mounting Bolt Dia.
6 mm
Hub Length
23 mm
For Axle Dia.
6 mm
Inside Slot Spacing - Width
38 mm
Outside Slot Spacing - Length
48 mm
Inside Slot Spacing - Length
38 mm
Mounting Plate Width
60 mm
Mounting Plate Length
60 mm
Outside Slot Spacing - Width
48 mm
Overall Wheel Width
17 mm

Details

Item
Plate Caster
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Number of Mounting Holes
4
Caster Frame Material
Steel
Non-Marking
Yes
Number of Wheels
1
System of Measurement
Metric
Series
POA
Caster Brake Type
No Brake
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Caster Sub-Type
Swivel
Core Color
Black
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
165 lb
Includes Thread Guards
No
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
80 Degrees C
Tread Shape
Standard
Swivel Raceway Type
Double Ball
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Hardness Rating
70 Shore D
Operating Temperature - Minimum
-25 Degrees C
Mounting Hole Type
Slot
Frame Construction
Pressed
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Wheel Dia. 51 mm, Wheel Width 17 mm, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
