Shop ZORO SELECT

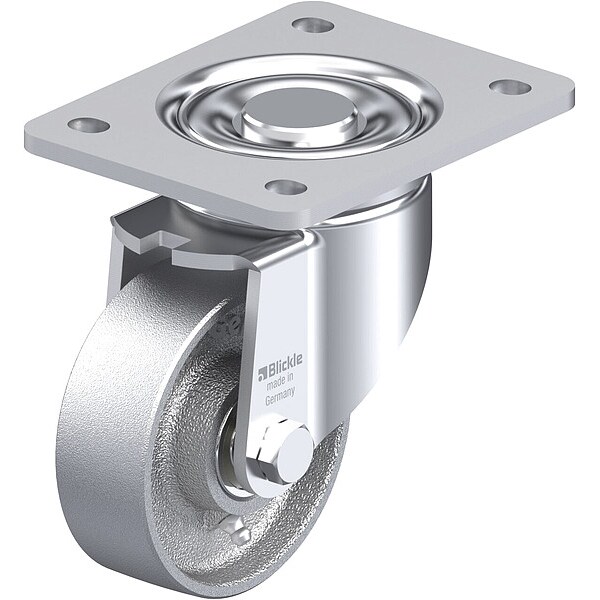

Plate Caster, Swivel, 5 1/2"H

  • Mfr # LH-G 100K-3

  • Zoro # G714810848

product price:  $183.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Metric
Wheel Width
35 mm
Series
G
Caster Frame Material
Steel
Mounting Height
140 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-G 100K-3
Zoro #
G714810848
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
35 mm
Mounting Height
140 mm
Wheel Dia.
100 mm
Mounting Bolt Dia.
10 mm
Mounting Plate Thickness
6 mm
Inside Slot Spacing - Width
75.406 mm
For Axle Dia.
10 mm
Inside Slot Spacing - Length
104.775 mm
Overall Wheel Width
35 mm
Outside Slot Spacing - Width
80.169 mm
Mounting Plate Width
110 mm
Hub Length
45 mm
Mounting Plate Length
110 mm
Outside Slot Spacing - Length
104.775 mm

Details

System of Measurement
Metric
Series
G
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Non-Marking
Yes
Swivel Construction
Kingpin
Caster Brake Type
No Brake
Core Color
Gray
Number of Wheels
1
Wheel/Tread Color
Gray
Number of Mounting Holes
4
Application
Commercial
Features
Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Item
Plate Caster
Caster Mounting Type
Plate
Caster Sub-Type
Swivel
Mounting Hole Type
Slot
Frame Construction
Pressed
Includes Thread Guards
No
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Ball
Tread Shape
Standard
Load Capacity - Maximum
880 lb
Wheel Hardness Rating
180 HB
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 100 mm, Wheel Width 35 mm, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
