Shop ZORO SELECT

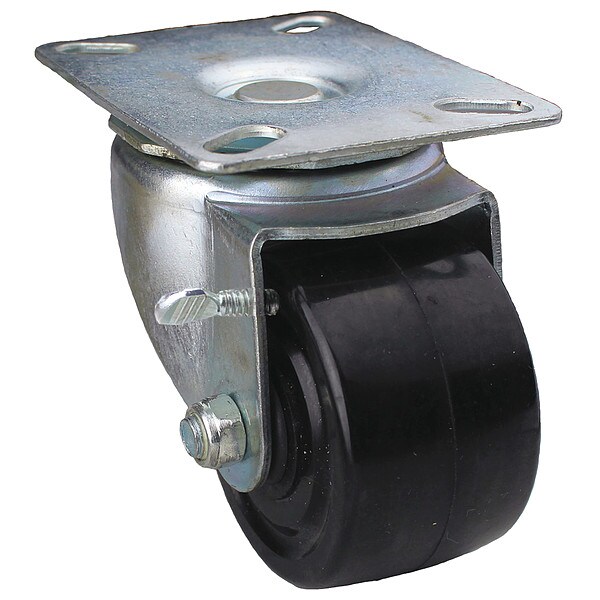

Plate Caster, Swivel, Phenolic, 3 7/8"H

  • Mfr # P10S-PH030R-P6-SB-001

  • Zoro # G2056040

product price:  $28.29
/ea

Key Features

Hub Length
1 7/8 in
Swivel Construction
Kingpin
Swivel Radius
2 1/4 in
Swivel Lead
3/4 in
Non-Marking
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P10S-PH030R-P6-SB-001
Zoro #
G2056040
UPC #
-
Country of Origin
China

Dimensions

Hub Length
1 7/8 in
Swivel Radius
2 1/4 in
Mounting Plate Thickness
1/8 in
Wheel Width
1 3/4 in
Overall Height
3-7/8"
For Axle Dia.
1/2 in
Overall Wheel Width
1 3/4 in
Mounting Height
3 7/8 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Wheel Dia.
3 in
Mounting Bolt Dia.
5/16 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
2.375 in
Outside Slot Spacing - Length
3.375 in
Mounting Plate Length
3 1/8 in
Inside Slot Spacing - Length
3 in

Details

Swivel Construction
Kingpin
Swivel Lead
3/4 in
Non-Marking
Yes
Operating Temperature Range
-20 Degrees to 250 Degrees F
Load Rating
500 lb
Caster Plate Hole Pattern
A
Load Rating Range
300 to 999 lb
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Includes Spanner Bushing
Yes
Standards
ANSI ICWM
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Frame Finish
Zinc Plated
Swivel Bearing Seal Type
Open
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Frame Construction
Stamped
Caster Sub-Type
Swivel
NSF Listed
No
Series
Pegasus 10 Series
Number of Wheels
1
Item
Plate Caster
Wheel Bearing Type
Roller
Swivel Raceway Type
Double Ball
Core Color
Black
Number of Mounting Holes
4
Features
Low Rolling Resistance
Wheel Core Material
Phenolic
Caster Frame Material
Steel
Brake Location
Side
With Toe Plate
No
Includes Thread Guards
No
Wheel Core Type
Solid
Swivel Lock Type
No Lock Included
Caster Mounting Type
Plate
Tread Shape
Standard
Includes Mounting Fasteners
No
Caster Brake Type
Side Brake
Frame Color
Silver
Wheel/Tread Material
Phenolic
Application
Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
ESD Conductive
No
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Material
Steel
Wheel/Tread Color
Black
System of Measurement
Inch
Load Capacity - Maximum
500 lb
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
102 HRE
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 3/4 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
