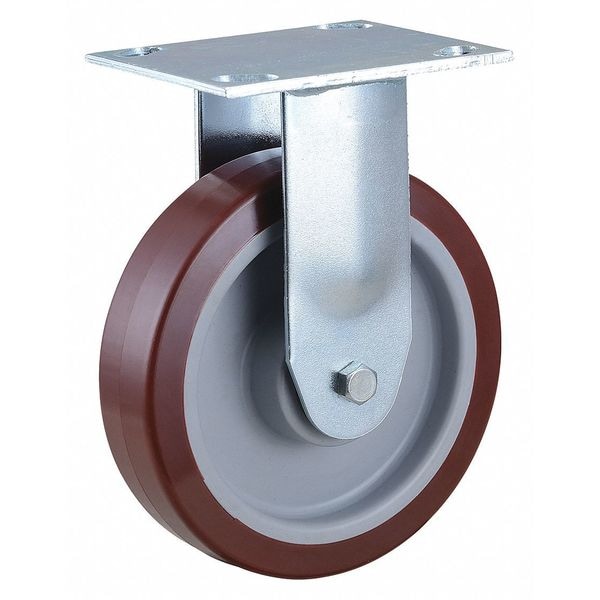

Zoro Select Rgd NSF-Listed Plate Cstr, Polyurethane, 6 in, 450 lb. 02XA06128R001GN - main

Rgd NSF-Listed Plate Cstr, Polyurethane, 6 in, 450 lb.

  • Mfr # 02XA06128R001GN

  • Zoro # G4806374

product price:  $18.55
/ea

Key Features

Standards
ANSI ICWM, NSF Listed
Caster Sub-Type
Rigid
Thread Guards
No
Mounting Bolt Dia.
3/8 in
Frame Finish
Zinc Plated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
02XA06128R001GN
Zoro #
G4806374
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Overall Height
7-5/16in
Wheel Dia.
6 in
Wheel Width
1 1/2 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Height
7 5/16 in
Mounting Plate Thickness
5/32in

Details

Standards
ANSI ICWM, NSF Listed
Caster Sub-Type
Rigid
Thread Guards
No
Item
Plate Caster
Frame Finish
Zinc Plated
Extended Lead
No
Core Color
Gray
Caster Plate Hole Pattern
B
Number of Wheels
1
Non-Marking
Yes
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Replacement Wheel
IX0610106G
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Included
No
Caster Temp. Range Available
Yes
Wheel Color
Maroon
Load Rating
450 lb
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Wheel Core Material
Polyolefin
Tread Shape
Standard
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Swivel Construction
Kingpinless
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
Load Capacity - Maximum
450 lb
Wheel Hardness Rating
95 Shore A
Compatible With
IX0610106G
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Rigid, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
