  11. Plate Caster, Swivel, Phenolic, 6 1/2"H
Zoro Select Plate Caster, Swivel, Phenolic, 6 1/2"H P21S-PH050R-16-YZ - main

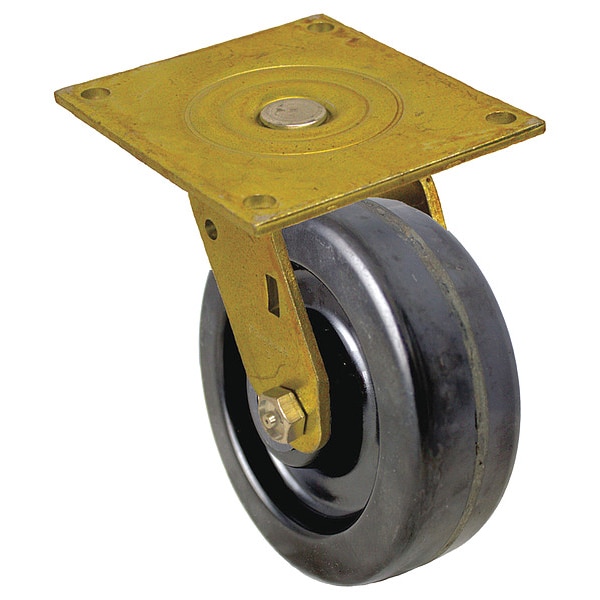

Plate Caster, Swivel, Phenolic, 6 1/2"H

  • Mfr # P21S-PH050R-16-YZ

  • Zoro # G3740923

product price: $31.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PH050R-16-YZ
Zoro #
G3740923
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Mounting Plate Thickness
7/32 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
4 5/16 in
Hub Length
2 3/16 in
Overall Height
6-1/2in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/4 in
Outside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
1000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
102 HRE
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Swivel Lock Type
No Lock Included
Includes Spanner Bushing
Yes
Includes Mounting Fasteners
No
ESD Conductive
No
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Frame Color
Yellow
Frame Construction
Stamped
Swivel Raceway Type
Double Ball
Swivel Lead
1 9/16 in
Wheel Core Material
Phenolic
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Replacement Wheel
5VF72
Features
Low Rolling Resistance
Series
Pegasus 21 Series
Load Rating Range
1000 to 2999 lb
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Swivel Construction
Kingpin
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Operating Temperature Range
-20 Degrees to 250 Degrees F
NSF Listed
No
With Toe Plate
No
Swivel Bearing Seal Type
Open
Load Capacity - Maximum
1,000 lb
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
