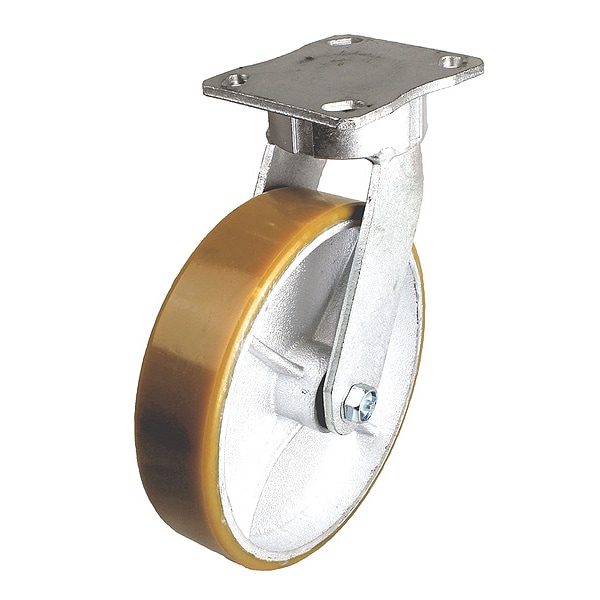

Zoro Select Plate Caster, 1200 lb. Ld Rating, Ball P25R-UY060KP-14-001 - main

Plate Caster, 1200 lb. Ld Rating, Ball

  • Mfr # P25R-UY060KP-14-001

  • Zoro # G7279251

product price:  $33.89
/ea

Key Features

Caster Frame Material
Steel
Thread Guards
No
Load Rating
1200 lb
Caster Temp. Range Available
Yes
Mounting Bolt Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P25R-UY060KP-14-001
Zoro #
G7279251
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Overall Height
7-1/2in
Swivel Radius
None- Rigid Caster
Wheel Dia.
6 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Height
7 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Thickness
0.236 in

Details

Caster Frame Material
Steel
Thread Guards
No
Load Rating
1200 lb
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
B
Number of Wheels
1
Extended Lead
No
Replacement Wheel
Mfr. No. P-UY-060x020/050KP
Features
Floor Protective
Item
Kingpinless Rigid Caster
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Caster Brake Included
No
Core Color
Gray
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Rigid
Wheel Color
Yellow
Non-Marking
Yes
Caster Brake Type
No Brake
Load Rating Range
Medium Duty
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Number of Mounting Holes
4
Wheel Bearing Type
Precision Ball
Tread Shape
Standard
Wheel Core Material
Cast Iron
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Load Capacity
1200 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Series
P25 Series
ESD Conductive
No
Tread Color
Yellow
Caster Mounting Type
Plate
Load Capacity - Maximum
1,200 lb
Compatible With
P-UY-060X020/050KP
Wheel Hardness Rating
92 Shore A
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
