  6. Plate Caster, Swivel, Polyurethane, 4 3/8"H
Zoro Select Plate Caster, Swivel, Polyurethane, 4 3/8"H LKPA-PATH 80KF - main

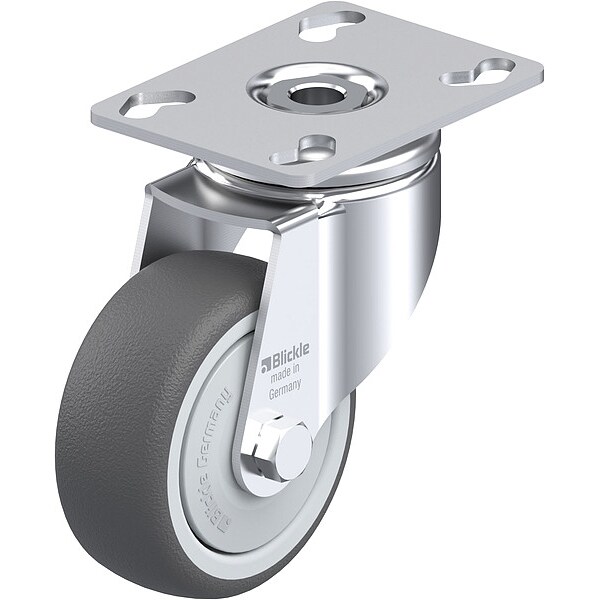

Plate Caster, Swivel, Polyurethane, 4 3/8"H

  • Mfr # LKPA-PATH 80KF

  • Zoro # G214810980

product price:  $43.25
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
79 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LKPA-PATH 80KF
Zoro #
G214810980
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
79 mm
Mounting Plate Thickness
3 mm
Mounting Bolt Dia.
8 mm
Mounting Height
111 mm
Wheel Width
32 mm
Outside Slot Spacing - Width
51 mm
Mounting Plate Length
90 mm
Outside Slot Spacing - Length
75 mm
Hub Length
40 mm
Overall Wheel Width
32 mm
Inside Slot Spacing - Length
61 mm
Inside Slot Spacing - Width
45 mm
For Axle Dia.
8 mm
Mounting Plate Width
66 mm

Details

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Silver
Non-Marking
Yes
Swivel Construction
Kingpin
Caster Frame Material
Steel
Series
PATH
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large
Frame Finish
Zinc Plated
Number of Wheels
1
Item
Plate Caster
Mounting Hole Type
Slot
Includes Thread Guards
Yes
Wheel Hardness Rating
94 Shore A
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature - Maximum
70 Degrees C
NSF Listed
No
Mounting Plate Shape
Rectangle
Swivel Raceway Type
Double Ball
Frame Construction
Pressed
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Load Capacity - Maximum
265 lb
Operating Temperature - Minimum
-20 Degrees C
Wheel Core Material
Nylon
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll

Description

Swivel, Plate Caster, Wheel Dia. 79 mm, Wheel Width 32 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
