Shop ZORO SELECT

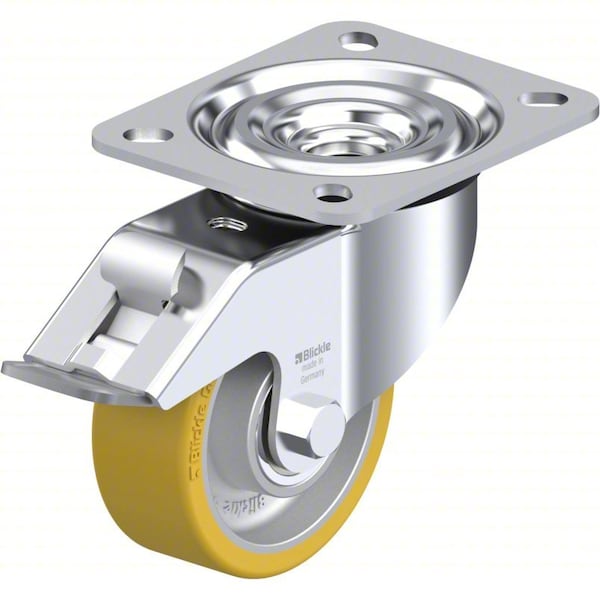

Plate Caster, Swivel, Polyurethane, 4"H

  • Mfr # L-ALTH 80K-FI

  • Zoro # G614810962

product price:  $124.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Type
Total Lock
Core Color
Silver
Series
ALTH
Mounting Height
102 mm
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-ALTH 80K-FI
Zoro #
G614810962
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Height
102 mm
Wheel Width
30 mm
Mounting Bolt Dia.
9 mm
Wheel Dia.
79 mm
Outside Slot Spacing - Width
60 mm
Mounting Plate Length
100 mm
Outside Slot Spacing - Length
80 mm
For Axle Dia.
8 mm
Inside Slot Spacing - Length
76 mm
Hub Length
38 mm
Overall Wheel Width
30 mm
Mounting Plate Width
86 mm
Inside Slot Spacing - Width
55 mm
Mounting Plate Thickness
3 mm

Details

Caster Brake Type
Total Lock
Core Color
Silver
Series
ALTH
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
System of Measurement
Metric
Non-Marking
Yes
Caster Mounting Type
Plate
Caster Sub-Type
Swivel
Wheel/Tread Color
Beige
Number of Wheels
1
Swivel Construction
Kingpin
Item
Plate Caster
Number of Mounting Holes
4
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Operating Temperature - Minimum
-20 Degrees C
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel Core Type
Solid
Wheel Core Material
Aluminum
Includes Thread Guards
No
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Load Capacity - Maximum
440 lb
Swivel Raceway Type
Double Ball
Operating Temperature - Maximum
70 Degrees C
Wheel Bearing Material
Steel
Wheel Bearing Type
Ball
Mounting Hole Type
Slot
Swivel Bearing Seal Type
Sealed
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Frame Construction
Pressed
Brake Location
Rear
Wheel Hardness Rating
92 Shore A

Description

Swivel, Plate Caster, Wheel Dia. 79 mm, Wheel Width 30 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
