  6. Plate Caster, Swivel, Polyurethane, 4"H

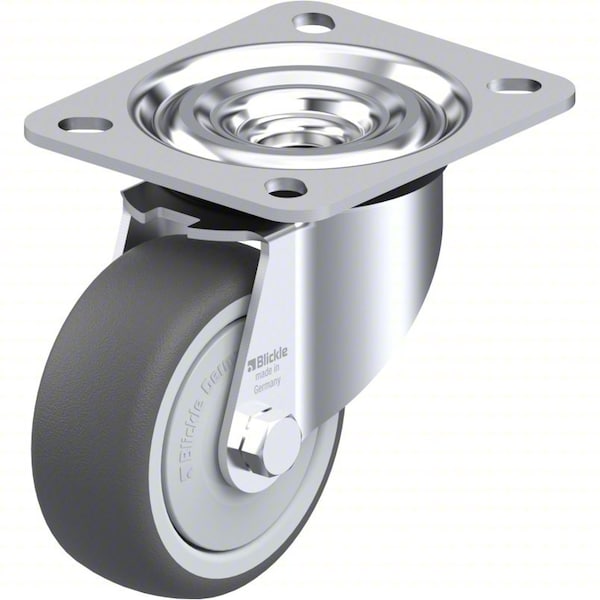

Zoro Select Plate Caster, Swivel, Polyurethane, 4"H L-PATH 80KF - main

Plate Caster, Swivel, Polyurethane, 4"H

  • Mfr # L-PATH 80KF

  • Zoro # G014810876

product price:  $44.69
/ea

Key Features

Caster Mounting Type
Plate
Number of Mounting Holes
4
Caster Brake Type
No Brake
Wheel Width
32 mm
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-PATH 80KF
Zoro #
G014810876
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
32 mm
Mounting Bolt Dia.
9 mm
Wheel Dia.
79 mm
Mounting Height
102 mm
Inside Slot Spacing - Length
76 mm
Outside Slot Spacing - Width
60 mm
Hub Length
38 mm
Mounting Plate Length
100 mm
For Axle Dia.
8 mm
Mounting Plate Width
86 mm
Inside Slot Spacing - Width
55 mm
Overall Wheel Width
32 mm
Outside Slot Spacing - Length
80 mm
Mounting Plate Thickness
3 mm

Details

Caster Mounting Type
Plate
Number of Mounting Holes
4
Caster Brake Type
No Brake
Number of Wheels
1
Core Color
Silver
Wheel/Tread Color
Gray
System of Measurement
Metric
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Item
Plate Caster
Swivel Construction
Kingpin
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large
Series
PATH
Caster Sub-Type
Swivel
Non-Marking
Yes
Wheel Core Type
Solid
Frame Construction
Pressed
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Swivel Bearing Seal Type
Sealed
Wheel Bearing Type
Ball
Operating Temperature - Maximum
70 Degrees C
Mounting Hole Type
Slot
Swivel Raceway Type
Double Ball
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-20 Degrees C
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel Hardness Rating
94 Shore A
Includes Thread Guards
Yes
Wheel Core Material
Nylon
NSF Listed
No
Load Capacity - Maximum
330 lb

Description

Swivel, Plate Caster, Wheel Dia. 79 mm, Wheel Width 32 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
