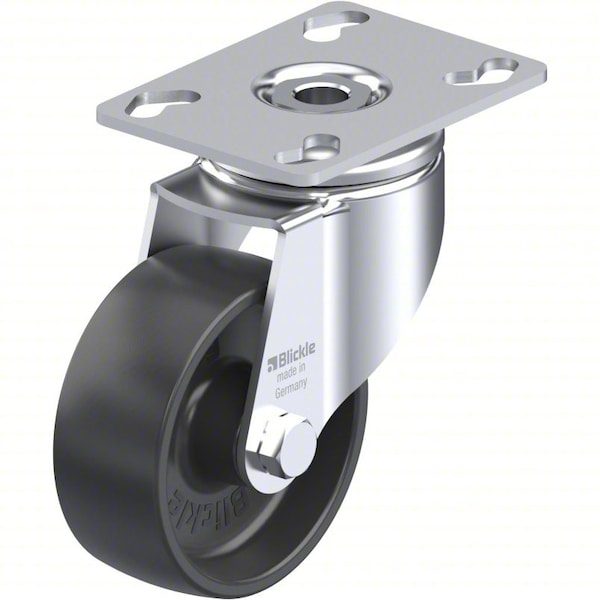

Zoro Select Plate Caster, Swivel, 4 3/8"H LKPA-POA 80G - main

Plate Caster, Swivel, 4 3/8"H

  • Mfr # LKPA-POA 80G

  • Zoro # G614810955

product price:  $31.29
/ea

Key Features

Mounting Height
111 mm
Caster Frame Material
Steel
Wheel/Tread Color
Black
Mounting Bolt Dia.
8 mm
Frame Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPA-POA 80G
Zoro #
G614810955
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Height
111 mm
Mounting Bolt Dia.
8 mm
Wheel Width
32 mm
Wheel Dia.
79 mm
Mounting Plate Width
66 mm
Mounting Plate Length
90 mm
Hub Length
40 mm
For Axle Dia.
8 mm
Mounting Plate Thickness
3 mm
Inside Slot Spacing - Length
61 mm
Overall Wheel Width
32 mm
Inside Slot Spacing - Width
45 mm
Outside Slot Spacing - Length
75 mm
Outside Slot Spacing - Width
51 mm

Details

Caster Frame Material
Steel
Wheel/Tread Color
Black
Frame Finish
Zinc Plated
Number of Mounting Holes
4
Caster Brake Type
No Brake
Item
Plate Caster
Core Color
Black
System of Measurement
Metric
Number of Wheels
1
Series
POA
Swivel Construction
Kingpin
Caster Sub-Type
Swivel
Non-Marking
Yes
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Caster Mounting Type
Plate
Frame Construction
Pressed
Includes Thread Guards
No
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Hardness Rating
70 Shore D
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Plain
Load Capacity - Maximum
265 lb
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
80 Degrees C
Operating Temperature - Minimum
-25 Degrees C
Mounting Hole Type
Slot
Tread Shape
Standard
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Wheel Dia. 79 mm, Wheel Width 32 mm, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
