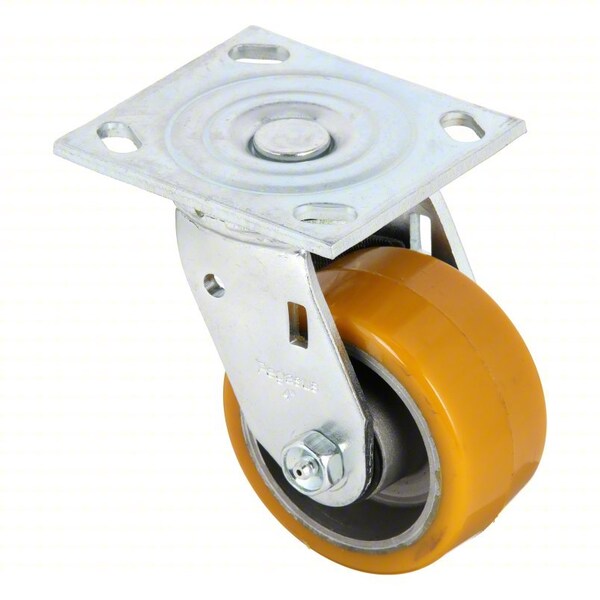

Plate Caster, Swivel, Polyurethane, 5 5/8"H

  • Mfr # P21S-UA040R-14-DL

  • Zoro # G6630318

product price:
$
45.19
/ea

Key Features

Extended Lead
No
Core Color
Silver
Caster Plate Hole Pattern
B
Thread Guards
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P21S-UA040R-14-DL
Zoro #
G6630318
UPC #
-
Country of Origin
China
Extended Lead
No
Core Color
Silver
Caster Plate Hole Pattern
B
Thread Guards
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Included
No
Non-Marking
Yes
Load Rating
700 lb
Caster Frame Material
Steel
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Inside Bolt Hole Spacing
3 in x 3 in
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Wheel Color
Yellow
Features
Floor Protective
Item
Plate Caster
Number of Wheels
1
Includes
4-Position Directional Lock
Caster Brake Type
Directional Lock
Replacement Wheel
Mfr. No. P-UA-040x020/050R
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Roller
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Lock Type
4-Position Directional Lock
Operating Temperature Range
-15 Degrees To 160 Degrees F
Wheel Core Material
Aluminum
Tread Shape
Standard
Swivel Construction
Kingpin
Load Rating Range
Medium Duty
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
ESD Conductive
No
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity
700 lb
Caster Mounting Type
Plate
Tread Color
Yellow
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
700 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
