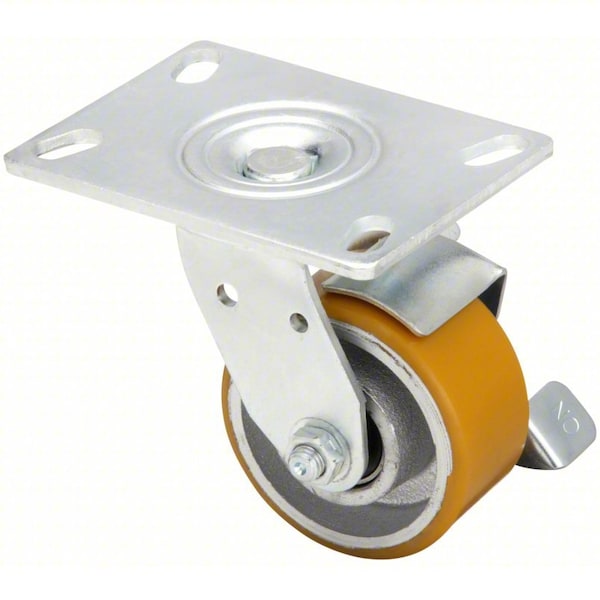

Plate Caster, Swivel, Polyurethane, 5 5/8"H

  • Mfr # P21S-UY040K-16-WB-DL

  • Zoro # G6565139

product price:
$
55.59
/ea

Key Features

Wheel Dia.
4 in
Features
Floor Protective
Standards
ANSI ICWM
Thread Guards
No
Wheel Color
Yellow
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-UY040K-16-WB-DL
Zoro #
G6565139
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Mounting Bolt Dia.
1/2 in
Overall Height
5-5/8"
Swivel Radius
3 5/8 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Thickness
7/32 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
2.438 in

Details

Features
Floor Protective
Standards
ANSI ICWM
Thread Guards
No
Wheel Color
Yellow
Load Rating
700 lb
Item
Plate Caster
Caster Brake Included
Yes
Number of Wheels
1
Extended Lead
No
Frame Finish
Zinc Plated
Core Color
Silver
Caster Plate Hole Pattern
A
Non-Marking
Yes
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
Directional Lock, Side Brake
Includes
Complete Caster with Directional Lock
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Replacement Wheel
Mfr. No. P-UY-040x020/050K
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Tread Shape
Standard
Wheel Core Material
Iron
Swivel Construction
Kingpin
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Load Rating Range
Medium Duty
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Series
P21 Series
Tread Color
Yellow
Tread
Standard
ESD Conductive
No
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
700 lb
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
700 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
