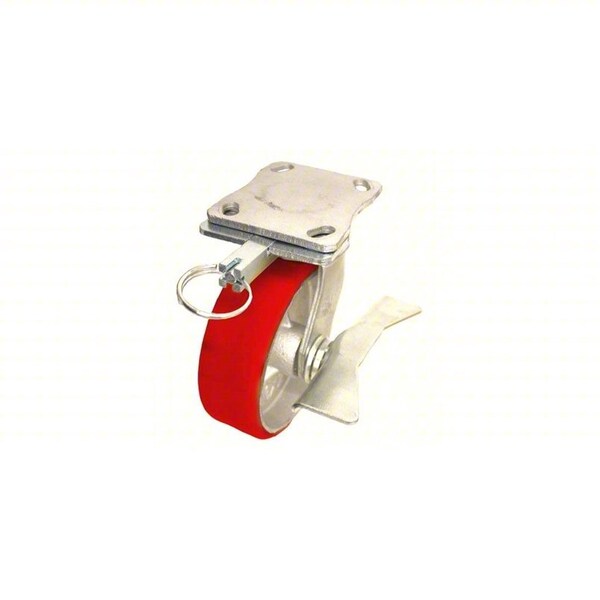

Plate Caster, Swivel, Polyurethane, 7 1/2"H

  • Mfr # P25S-UY060KP-16-WB-DL-001

  • Zoro # G3317494

product price:
$
71.69
/ea

Key Features

Wheel Width
2 in
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Swivel Radius
5 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25S-UY060KP-16-WB-DL-001
Zoro #
G3317494
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Swivel Radius
5 in
Mounting Bolt Dia.
1/2 in
Overall Height
7-1/2"
Wheel Dia.
6 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
7 1/2 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
4 1/2 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4 in

Details

Caster Brake Included
Yes
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Number of Wheels
1
Load Rating
1200 lb
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Core Color
Silver
Caster Brake Type
Directional Lock, Side Brake
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Extended Lead
No
Item
Plate Caster
Features
Floor Protective
Thread Guards
No
Non-Marking
Yes
Standards
ANSI ICWM
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. P-UY-060X020/050KP
Wheel Color
Yellow
Includes
Strap Type Brake, 4-Position Directional Lock
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Medium Duty
Wheel Bearing Type
Ball
Tread Shape
Standard
Swivel Construction
Kingpinless
Wheel Core Material
Iron
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Swivel Lock Type
4-Position Directional Lock
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Tread
Standard
Series
P25 Series
Load Capacity
1200 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Yellow
ESD Conductive
No
Caster Mounting Type
Plate
Compatible With
P-UY-060X020/050KP
Load Capacity - Maximum
1,250 lb
Wheel Hardness Rating
92 Shore A
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Brake Location
Side
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
