  6. Leveling Caster, Nylon, 3 in., 1190 lb.

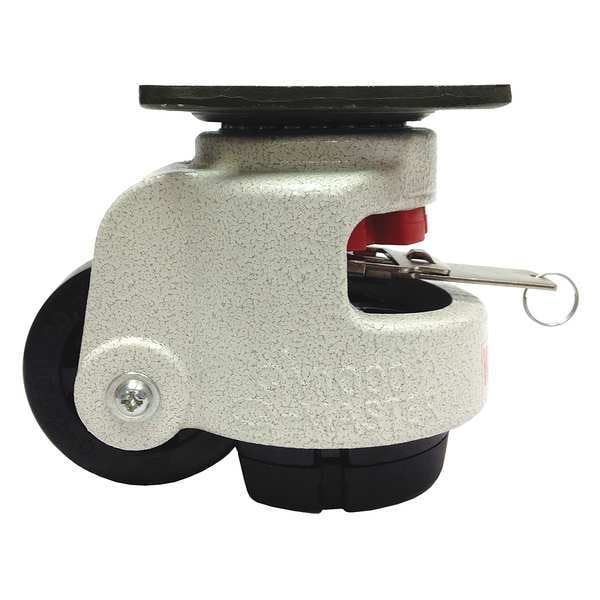

Zoro Select Leveling Caster, Nylon, 3 in., 1190 lb. WMIWR-72PF - main

Leveling Caster, Nylon, 3 in., 1190 lb.

  • Mfr # WMIWR-72PF

  • Zoro # G8959386

product price:  $84.39
/ea
Free Shipping & Returns

Key Features

Overall Height
4-23/32in
Caster Plate Hole Pattern
D
Operating Position
Side
Includes
Mounting Hardware
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WMIWR-72PF
Zoro #
G8959386
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
4-23/32in
Wheel Dia.
3 in
Wheel Width
1 3/8 in
Stem Dia.
No Stem
Mounting Bolt Dia.
10 mm
Mounting Plate Size
3-3/4 in x 3-3/4 in
Maximum Leveling Height
5 3/16 in
Mounting Height
4 3/4 in
Mounting Plate Width
95 mm
Mounting Plate Length
95 mm
Mounting Plate Thickness
6 mm
Bolt Hole Spacing - Width
11 mm
Overall Wheel Width
3 in
Bolt Hole Spacing - Length
10 mm

Details

Caster Plate Hole Pattern
D
Operating Position
Side
Includes
Mounting Hardware
Caster Temp. Range Available
Yes
Item
Plate Caster
Replacement Wheel
Mfr. No. WMQW100
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Non-Marking
Yes
Outside Bolt Hole Spacing
2-3/4 in x 2-3/4 in
Caster Sub-Type
Swivel
Frame Finish
Powder Coated
Wheel Color
Black
Caster Mounting Type
Plate
Core Color
Black
Features
Anti-Vibration, Roll and Set, Rotation Handle
Load Rating
880 lb
Caster Brake Included
No
Standards
ANSI ICWM
Foot/Pad Material
Rubber
Number of Wheels
1
Caster Brake Type
Leveling Pad
Wheel Bearing Type
Plain
Adjustment Style
Ratchet, Thumbwheel
Wheel/Tread Material
Nylon
Swivel Raceway Type
Double Ball
Operating Temperature Range
14 Degrees to 194 Degrees F
Tread Shape
Standard
Load Rating Range
300 to 999 lb
Number of Mounting Holes
4
Wheel Core Material
Nylon
Caster Frame Material
Aluminum
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpinless
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
880 lb
For Surface Type
Asphalt, Ceramic, Rubber, Tile, Vinyl, Wood
Caster Features
Low Profile
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Load Rating 880 lb, Wheel Dia. 3 in, Wheel Width 1 3/8 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Leveling Pad, Tread Shape Standard
