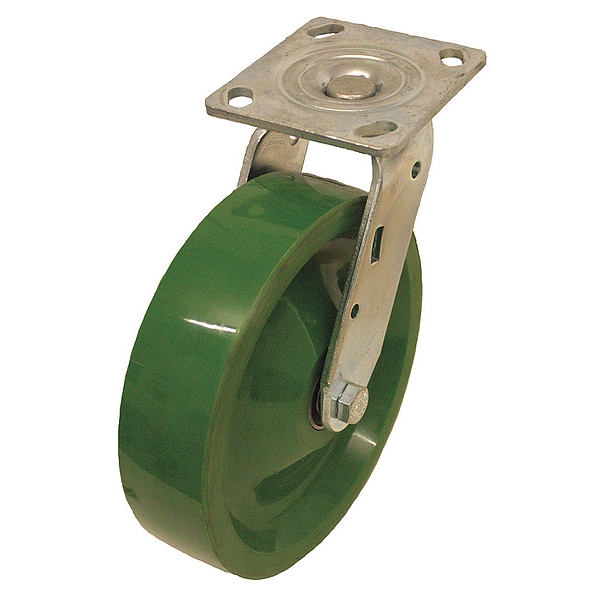

Zoro Select Plate Caster, Swivel, Polyurethane, 9 1/2"H P21S-U080K-14 - main

Plate Caster, Swivel, Polyurethane, 9 1/2"H

  • Mfr # P21S-U080K-14

  • Zoro # G3575562

product price:  $106.99
/ea
Free Shipping & Returns

Key Features

Wheel Bearing Type
Ball
Tread Color
Green
Swivel Construction
Kingpin
Mounting Height
9 1/2 in
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-U080K-14
Zoro #
G3575562
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
9 1/2 in
Swivel Radius
6 3/4 in
Overall Height
9-1/2in
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 in
For Axle Dia.
1/2 in

Details

Wheel Bearing Type
Ball
Tread Color
Green
Swivel Construction
Kingpin
Thread Guards
No
Caster Plate Hole Pattern
B
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Tread Shape
Standard
Load Rating
1000 lb
Load Rating Range
Medium-Duty
Wheel Core Material
Polyurethane
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
No Brake
Features
Floor Protective
Tread
Standard
Number of Mounting Holes
4
System of Measurement
Inch
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Replacement Wheel
Mfr. No. P-U-080x020/050K
Core Color
Green
Wheel Color
Green
Wheel/Tread Material
Polyurethane
Caster Mounting Type
Plate
Swivel Lock Type
No Lock Included
Inside Bolt Hole Spacing
3 in x 3 in
Caster Brake Included
No
Item
Swivel Caster
Non-Marking
Yes
Number of Wheels
1
Extended Lead
No
Standards
ANSI ICWM, NSF Listed
Wheel/Tread Color
Green
Accessories
Optional: P-DL21-14 (Directional Lock)
Series
P21 Series
ESD Conductive
No
Load Capacity
1000 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
1,000 lb
Compatible With
P-U-080X020/050K
Wheel Hardness Rating
75 Shore D
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
