  11. Plate Caster, Swivel, Polyurethane, 9 1/4"H

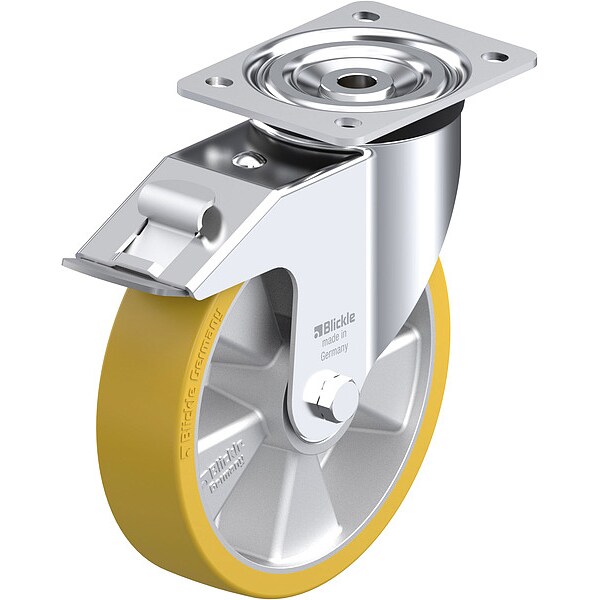

Zoro Select Plate Caster, Swivel, Polyurethane, 9 1/4"H L-ALTH 200K-FI - main

Plate Caster, Swivel, Polyurethane, 9 1/4"H

  • Mfr # L-ALTH 200K-FI

  • Zoro # G414810919

product price: $261.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-ALTH 200K-FI
Zoro #
G414810919
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/4 in
Mounting Plate Thickness
5/32 in
Mounting Bolt Dia.
11 mm
Outside Slot Spacing - Length
4.125 in
Inside Slot Spacing - Width
2.969 in
Mounting Plate Length
5 1/2 in
Overall Wheel Width
2 in
Hub Length
60 mm
Inside Slot Spacing - Length
4.125 in
Mounting Plate Width
4 5/16 in
For Axle Dia.
12 mm
Outside Slot Spacing - Width
3.156 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Beige
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Swivel Construction
Kingpin
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
Frame Finish
Zinc Plated
Series
ALTH
Brake Location
Rear
Mounting Plate Shape
Rectangle
Wheel Core Material
Aluminum
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Load Capacity - Maximum
880 lb
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Swivel Bearing Seal Type
Sealed
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Swivel Raceway Type
Double Ball
Frame Construction
Pressed
Operating Temperature - Maximum
70 Degrees C
Includes Thread Guards
No
Operating Temperature - Minimum
-20 Degrees C

Description

Swivel, Plate Caster, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
