  6. Plate Caster, Swivel, Polyurethane, 9 1/4"H
Zoro Select Plate Caster, Swivel, Polyurethane, 9 1/4"H L-PATH 200KA - main

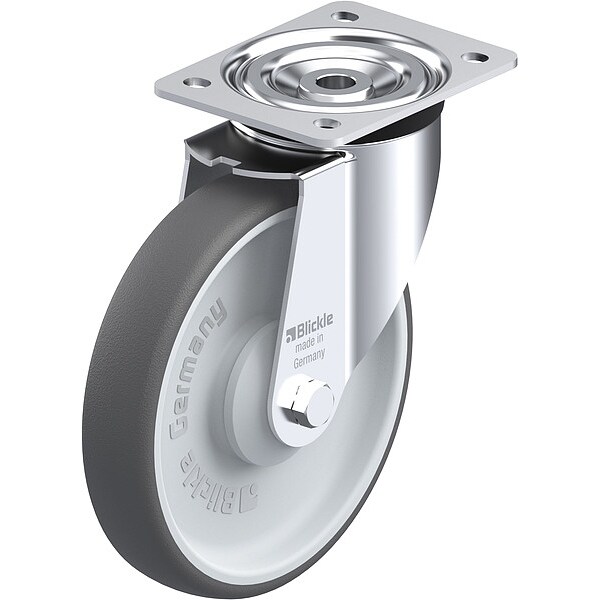

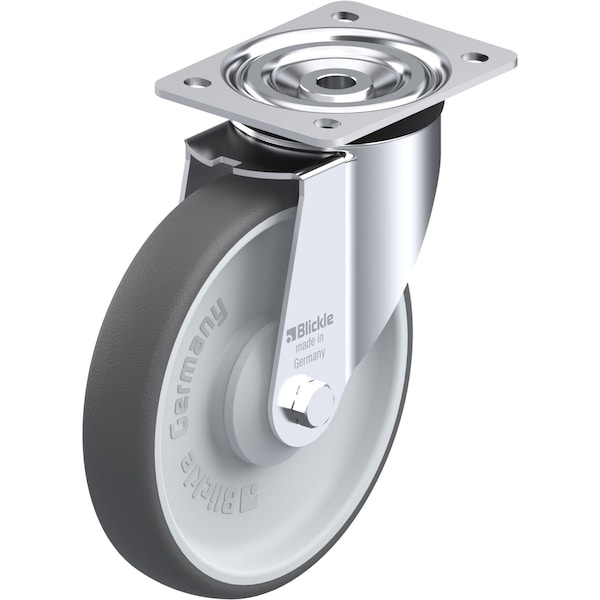

Plate Caster, Swivel, Polyurethane, 9 1/4"H

  • Mfr # L-PATH 200KA

  • Zoro # G214810928

product price:  $141.99
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Number of Wheels
1
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
L-PATH 200KA
Zoro #
G214810928
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Width
1 9/16 in
Wheel Dia.
8 in
Mounting Height
9 1/4 in
Inside Slot Spacing - Length
4.125 in
Mounting Plate Width
110 mm
Mounting Plate Length
4 5/16 in
Mounting Plate Thickness
5/32 in
Inside Slot Spacing - Width
2.969 in
Outside Slot Spacing - Width
3.156 in
Hub Length
65 mm
Outside Slot Spacing - Length
4.125 in
Overall Wheel Width
1 9/16 in
For Axle Dia.
12 mm

Details

Non-Marking
Yes
Number of Wheels
1
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Item
Plate Caster
Series
PATH
Number of Mounting Holes
4
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Color
Gray
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
Caster Brake Type
No Brake
Core Color
Silver
Caster Frame Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
NSF Listed
No
Tread Shape
Standard
Wheel Core Type
Solid
Swivel Raceway Type
Double Ball
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Includes Thread Guards
Yes
Operating Temperature - Maximum
70 Degrees C
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Load Capacity - Maximum
880 lb
Wheel/Tread Material
Polyurethane
Swivel Bearing Seal Type
Sealed
Wheel Hardness Rating
94 Shore A
Mounting Hole Type
Slot
Operating Temperature - Minimum
-20 Degrees C
Frame Construction
Pressed
Wheel Bearing Type
Ball
Wheel Core Material
Nylon

Description

Swivel, Plate Caster, Wheel Dia. 8 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
