  11. Plate Caster, Swivel, Rubber, 4 in., 176 lb.
Zoro Select Plate Caster, Swivel, Rubber, 4 in., 176 lb. TSED 100 RN0D B - main

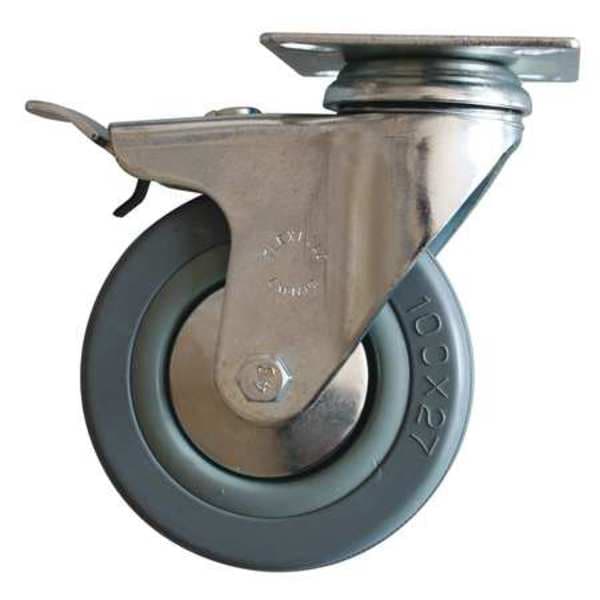

Plate Caster, Swivel, Rubber, 4 in., 176 lb.

  • Mfr # TSED 100 RN0D B

  • Zoro # G4396795

product price: $12.79
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
Face Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TSED 100 RN0D B
Zoro #
G4396795
UPC #
-
Country of Origin
United Kingdom

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/8 in
Mounting Height
5 3/16 in
Mounting Plate Size
3 in x 3 in
Mounting Plate Thickness
3/32 in
Mounting Bolt Dia.
5/16 in
Overall Height
5-3/16in
Mounting Plate Width
3 in
Bolt Hole Spacing - Width
2.25 in
Bolt Hole Spacing - Length
2.25 in
Mounting Plate Length
3 in
For Axle Dia.
8 mm
Overall Wheel Width
27 mm

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
Face Brake
Load Rating
176 lb
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-1/4 in x 2-1/4 in
Inside Bolt Hole Spacing
2-1/4 in x 2-1/4 in
Caster Plate Hole Pattern
D
Standards
ISO 9001
Caster Brake Included
Yes
Wheel Color
Gray
Caster Temp. Range Available
Yes
Application
General Purpose
Thread Guards
No
Frame Finish
Zinc Plated
Extended Lead
No
Load Rating Range
0 to 299 lb
Swivel Raceway Type
Single Ball
Includes Thread Guards
Yes
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
Total Lock
Swivel Construction
Kingpin
Load Capacity - Maximum
176 lb
Brake Location
Face
Wheel Core Type
Solid
Mounting Hole Type
Hole
Mounting Plate Shape
Square
For Surface Type
Ceramic, Tile, Vinyl, Wood
Operating Temperature - Minimum
15 Degrees F
Operating Temperature - Maximum
100 Degrees F
Operating Temperature Range
14 Degrees to 104 Degrees F

Description

Swivel, Plate Caster, Load Rating 176 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 1/8 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking No, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Standard
