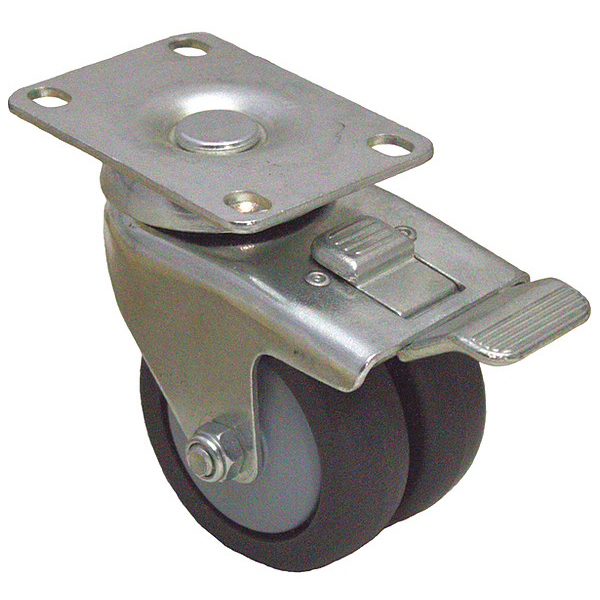

Zoro Select Plate Caster, 220 lb. Load Rating, Swivel P9S-RP030K-P-TB - main

Plate Caster, 220 lb. Load Rating, Swivel

  • Mfr # P9S-RP030K-P-TB

  • Zoro # G6874697

product price:  $25.15
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Wheel Width
29/32 in
Mounting Height
4 1/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P9S-RP030K-P-TB
Zoro #
G6874697
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
29/32 in
Mounting Height
4 1/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3 5/8 in
Wheel Dia.
3 in
Overall Height
4-1/16in
Stem Dia.
No Stem
Overall Wheel Width
29/32 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Length
2.75 in
For Axle Dia.
5/16 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Total Lock
Load Rating
220 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Tread Shape
Standard
Non-Marking
Yes
Number of Wheels
2
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
D
Caster Frame Material
Steel
Extended Lead
No
Standards
ANSI ICWM
Caster Brake Included
Yes
Core Color
Gray
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Application
Carts, Fixtures, Furniture, Institutional Equipment, Medical Equipment
Caster Stem Type
No Stem/Plate Included
Thread Guards
Yes
Features
Floor Protective, Noise Reduction, Reduced Swivel Force
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Wheel Color
Gray
Includes
Thread Guards
Swivel Lock Type
Total Lock
Operating Temperature Range
-15 Degrees to 160 Degrees F
Load Rating Range
Light-Duty
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
System of Measurement
Inch
Series
P9 Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
220 lb
Tread Color
Gray
Tread
Standard
Load Capacity - Maximum
220 lb
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Brake Location
Rear
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 220 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 in, Wheel Width 29/32 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Total Lock, Tread Shape Standard
