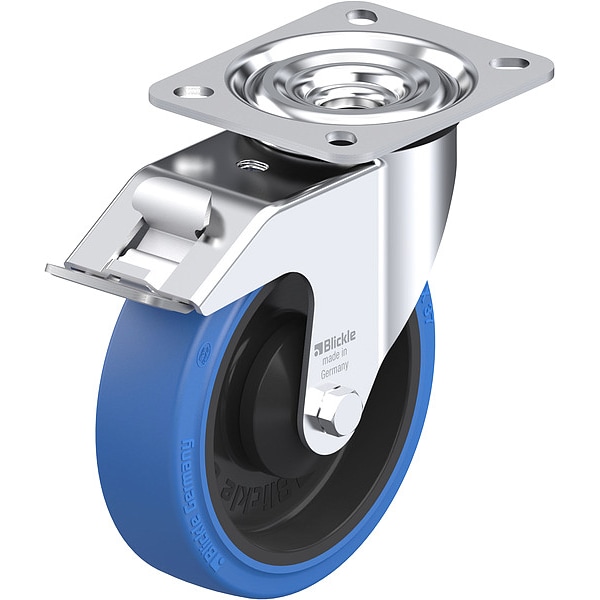

Zoro Select Plate Caster, Swivel, Rubber, 5 7/8"H L-POEV 125KA-FI-SB - main

Plate Caster, Swivel, Rubber, 5 7/8"H

  • Mfr # L-POEV 125KA-FI-SB

  • Zoro # G714811005

product price:  $90.25
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Color
Blue
Number of Mounting Holes
4
Caster Frame Material
Steel
Number of Wheels
1
Mounting Bolt Dia.
9 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-POEV 125KA-FI-SB
Zoro #
G714811005
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Bolt Dia.
9 mm
Wheel Width
37 mm
Mounting Height
149 mm
Wheel Dia.
127 mm
Inside Slot Spacing - Length
76 mm
Overall Wheel Width
37 mm
Mounting Plate Length
100 mm
Inside Slot Spacing - Width
55 mm
Mounting Plate Width
86 mm
Hub Length
40 mm
Mounting Plate Thickness
3 mm
Outside Slot Spacing - Length
80 mm
Outside Slot Spacing - Width
60 mm
For Axle Dia.
8 mm

Details

Wheel/Tread Color
Blue
Number of Mounting Holes
4
Caster Frame Material
Steel
Number of Wheels
1
Swivel Construction
Kingpin
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Item
Plate Caster
Frame Finish
Zinc Plated
System of Measurement
Metric
Non-Marking
Yes
Series
POEV
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Caster Sub-Type
Swivel
Core Color
Black
Wheel Core Type
Solid
Includes Thread Guards
Yes
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Wheel/Tread Material
Rubber
Wheel Hardness Rating
65 Shore A
Operating Temperature - Maximum
80 Degrees C
Mounting Plate Shape
Rectangle
Wheel Bearing Type
Ball
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Frame Construction
Pressed
Brake Location
Rear
NSF Listed
No
Load Capacity - Maximum
1,380 lb
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Swivel Bearing Seal Type
Sealed
Operating Temperature - Minimum
-20 Degrees C
Wheel Bearing Material
Steel

Description

Swivel, Plate Caster, Wheel Dia. 127 mm, Wheel Width 37 mm, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
