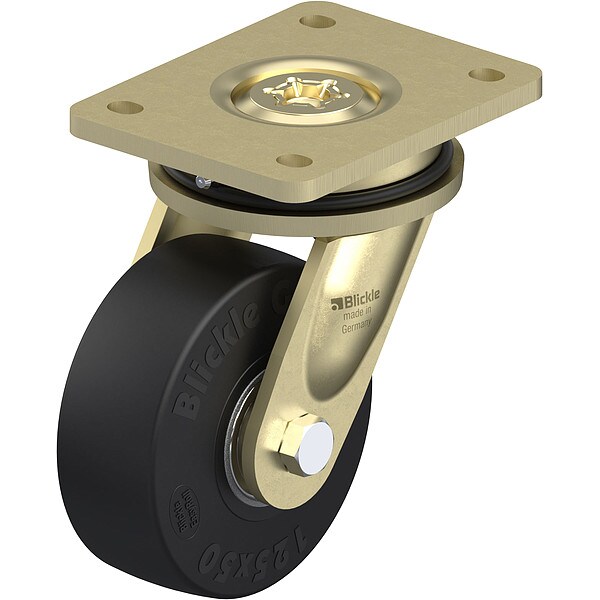

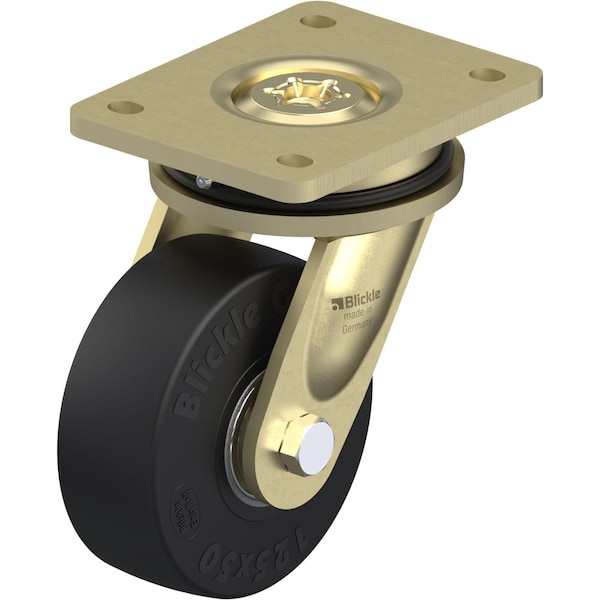

Plate Caster, Swivel, Rubber, 6 11/16"H

  • Mfr # LS-SE 125K
  • Zoro # G114810974
product price:
$
391.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Standards
ISO 104, ISO 355
Number of Mounting Holes
4
Non-Marking
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-SE 125K
Zoro #
G114810974
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
52 mm
Wheel Dia.
152 mm
Mounting Bolt Dia.
10 mm
Mounting Height
170 mm
Mounting Plate Length
140 mm
Bolt Hole Spacing - Length
80 mm
Overall Wheel Width
52 mm
For Axle Dia.
12 mm
Hub Length
50 mm
Mounting Plate Width
110 mm
Bolt Hole Spacing - Width
75 mm
Mounting Plate Thickness
8 mm

Details

Caster Sub-Type
Swivel
System of Measurement
Metric
Standards
ISO 104, ISO 355
Number of Mounting Holes
4
Non-Marking
No
Item
Plate Caster
Number of Wheels
1
Wheel/Tread Color
Black
Series
SE
Core Color
Black
Caster Brake Type
No Brake
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Features
Dust and Splash-Proof, Grease Nipple
Caster Mounting Type
Plate
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel/Tread Material
Rubber
Operating Temperature - Maximum
80 Degrees C
Wheel Hardness Rating
65 Shore A
Wheel Core Material
Nylon
Wheel Bearing Material
Steel
Wheel Bearing Type
Ball
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Load Capacity - Maximum
1,765 lb
Includes Thread Guards
No
Frame Construction
Welded
Mounting Hole Type
Hole
Wheel Core Type
Solid
Operating Temperature - Minimum
-20 Degrees C
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 152 mm, Wheel Width 52 mm, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
