Zoro Select Plate Caster, 1250 lb. Load, Silver Wheel BHS-C080R-16 - main

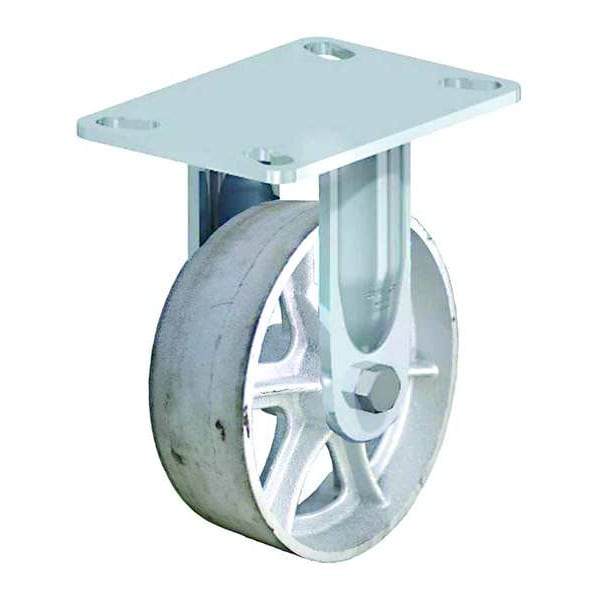

Plate Caster, 1250 lb. Load, Silver Wheel

  • Mfr # BHS-C080R-16

  • Zoro # G5557769

product price:  $62.15
/ea

Key Features

Load Rating
1250 lb
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Features
Push/Pull Force Reduction
Thread Guards
No
Caster Plate Hole Pattern
A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BHS-C080R-16
Zoro #
G5557769
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
1/2 in
Overall Height
9-5/8in
Wheel Width
2 in
Wheel Dia.
8 in
Mounting Height
9 11/16 in
Mounting Plate Size
4-1/2in x 6-1/4in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
2 in
For Axle Dia.
12 mm
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
4 1/2 in

Details

Load Rating
1250 lb
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Features
Push/Pull Force Reduction
Thread Guards
No
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
Caster Brake Included
No
Caster Temp. Range Available
Yes
Number of Wheels
1
Caster Brake Type
No Brake
Item
Rigid Caster
Standards
DIN EN, ANSI ICWM, ISO 9001
Caster Sub-Type
Rigid
Replacement Wheel
Mfr. No. P-C-080X020/050R
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Includes
Complete Caster
Extended Lead
No
Wheel Color
Silver
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Zinc Plated
Core Color
Gray
Non-Marking
No
Wheel/Tread Material
Cast Iron
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Wheel Bearing Type
Roller
Load Rating Range
Medium-Duty
Wheel Core Material
Cast Iron
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Color
Silver
System of Measurement
Inch
Tread
Standard
ESD Conductive
No
Load Capacity
1400 lb
Series
BHS 14/16 Series
Tread Color
Silver
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Load Capacity - Maximum
1,250 lb
Compatible With
P-C-080X020/050R
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
220 BHN
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Slot
Operating Temperature Range
Up to 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
