Shop ZORO SELECT

Plate Castr Kt, Polypropyln, 3", 150 lb, PK4

  • Mfr # KIT01PB03041004

  • Zoro # G9082017

product price:
$
14.15
/pk of 4, $3.54/ea

Key Features

Caster Sub-Type
Rigid, Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyolefin
Wheel Dia.
3 in
Wheel Width
1 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
KIT01PB03041004
Zoro #
G9082017
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/8 in
Mounting Height
3 9/16 in
Mounting Plate Size
1 15/16 in x 2 5/8 in
Mounting Plate Thickness
3/32in
Mounting Bolt Dia.
1/4 in
Swivel Radius
2 9/16 in
Overall Height
3-9/16"

Details

Item
Plate Casters
Caster Sub-Type
Rigid, Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyolefin
Load Rating
150 lb
Wheel Bearing Type
Plain
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
15/16 in x 2-1/8 in
Inside Bolt Hole Spacing
15/16 in x 2-1/8 in
Frame Finish
Zinc Plated
Caster Brake Type
Side Brake
Includes

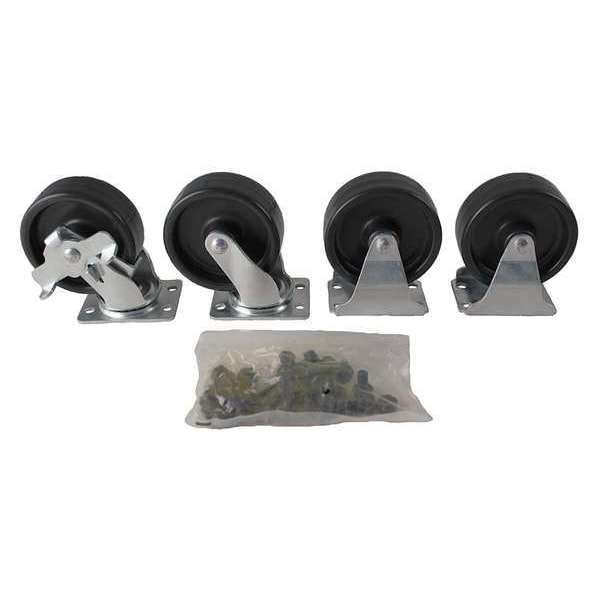

(2) Rigid Casters, Hardware, Swivel Caster, Swivel Caster with Brake
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Application
Tool Boxes
Wheel Color
Black
Thread Guards
No
Caster Plate Hole Pattern
D
Standards
ANSI ICWM
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Wheel Core Material
Polyolefin
Number of Mounting Holes
4
Load Rating Range
0 to 299 lb
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore D
Load Capacity - Maximum
150 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Rigid, Swivel, Plate Casters, Load Rating 150 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/8 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard, Package Quantity 4
