  10. /
  11. Plate Castr Kt, Polypropyln, 4", 180 lb, PK4
Shop All Plate Casters
Zoro Select

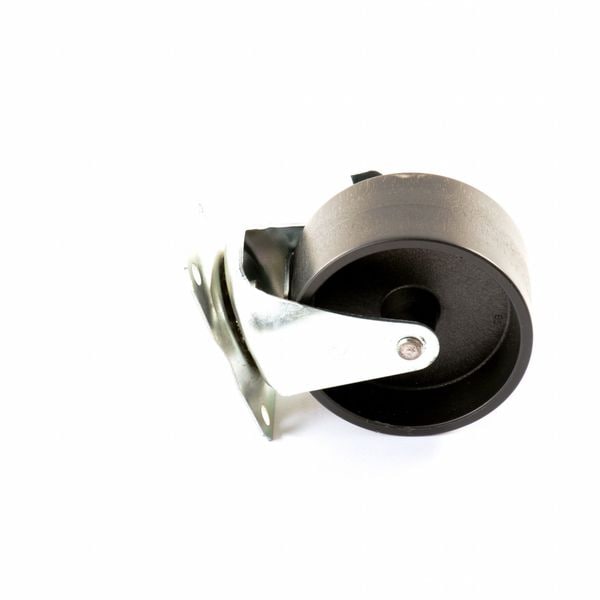

Plate Castr Kt, Polypropyln, 4", 180 lb, PK4

product price: $12.75
/pk 4, $3.19/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Rigid, Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polypropylene
See all product information

Product Information

Dimensions

Overall Height 4-7/8"
Wheel Dia. 4 in
Wheel Width 1 7/8 in
Mounting Plate Size 2 3/4 in x 3 5/8 in, 2 3/4 in x 4 in
Plate Size 2-3/4" x 3-23/32"
Mounting Bolt Dia. 3/8 in
Caster Plate Size 2-3/4" x 4"
Mounting Height 4 7/8 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Duty
Caster Sub-Type Rigid, Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polypropylene
Load Rating 180 lb
Number of Wheels 1
Wheel/Tread Material Polyolefin
Wheel Bearing Type Plain
Mounting Plate Bolt Hole Pattern D
Swivel Lock Type No Lock Included
Wheel Core Material Plastic
Caster Brake Type Side Pedal Brake
Core Color Black
Includes (2) Rigid, (2) Swivel with Brakes, Hardware
Caster Plate Hole Pattern D
Thread Guards No
Standards ANSI ICWM
Durometer 70 Shore D
Caster Product Group Plate Caster Kit with Brake
Caster Frame Material Steel
Caster Plate Thickness 1/8"
Frame Finish Zinc Plated
Application Tool Box
Item Standard Plate Caster Kit
Outside Bolt Hole Spacing 1-3/4 in x 3 in
Plate Caster Bolt Hole Pattern D
Frame Material Steel
Caster Swivel Lock Type No Lock Included
Caster Wheel Bearings Plain
Wheel Color Black
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Caster Temp. Range Available No
Caster Raceway Single Ball
Caster Core Material Polypropylene
Plate Thickness 1/8"
Number of Mounting Holes 4
Swivel Construction Kingpin
Wheel/Tread Hardness 65 Shore D
Non-Marking Yes
Wheel/Tread Hardness Rating Hard
Swivel Raceway Type Single Ball
Includes Thread Guards No
Tread Shape Standard
Load Rating Range 0 to 299 lb
Wheel/Tread Color Black

Description

Rigid, Swivel, Standard Plate Caster Kit, Load Rating 180 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 7/8 in, Wheel/Tread Material Polyolefin, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Pedal Brake, Tread Shape Standard, Package Quantity 4
