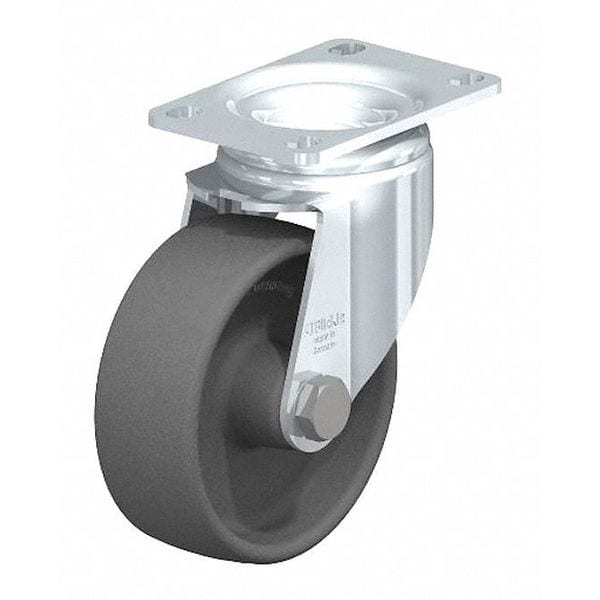

Plate Caster, 400 lb. Ld Rating, Swivel

  • Mfr # L-POG 100G-12

  • Zoro # G5587589

product price: $24.15
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Heavy Duty Nylon
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-POG 100G-12
Zoro #
G5587589
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 7/16 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2 in x 3-5/8 in
Mounting Plate Thickness
0.138 in
Mounting Bolt Dia.
9 mm
Overall Height
5-1/8in
Swivel Radius
3-7/16 in
Mounting Plate Length
3 5/8 in
Overall Wheel Width
1 7/16 in
For Axle Dia.
8 mm
Inside Slot Spacing - Length
2.813 in
Bolt Hole Spacing - Length
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Width
2 1/2 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Heavy Duty Nylon
Caster Brake Type
No Brake
Load Rating
400 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Brake Included
No
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Includes
Complete Caster
Extended Lead
No
Frame Finish
Zinc Plated
Features
Push/Pull Force Reduction
Wheel Color
Gray
Application
Retail, Industrial, Commercial, Corrosion Resistance
Thread Guards
No
Replacement Wheel
Mfr. No. POG 100/15G
Load Rating Range
Medium Duty
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Wheel Core Material
Nylon
Tread
Standard
Series
L Series
Load Capacity
400 lb
Tread Color
Gray
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: RI-03.12 (Directional Lock)
Load Capacity - Maximum
550 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
-15 Degrees To 175 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 7/16 in, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
