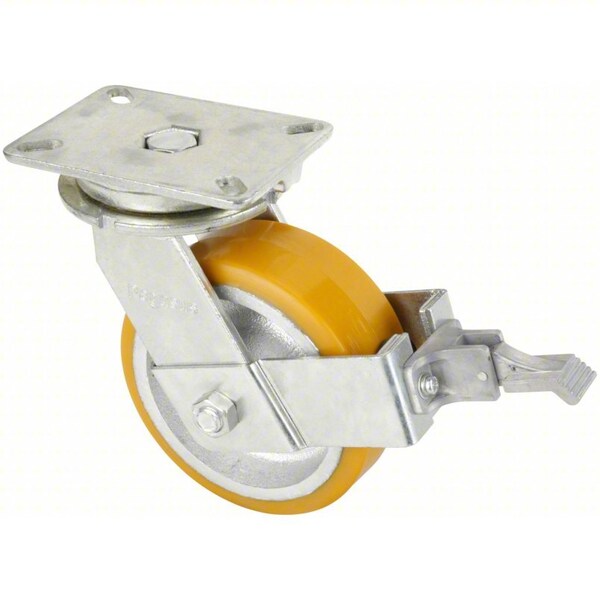

PlateCaster, Swivel, Polyurethane, 10 1/2"H

  • Mfr # P29S-UY080K-18-WK-DL
  • Zoro # G1199394
product price:
$
268.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Features
Floor Protective
Load Rating
2500 lb
Caster Frame Material
Steel
Mounting Bolt Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P29S-UY080K-18-WK-DL
Zoro #
G1199394
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Swivel Radius
8 1/2 in
Wheel Width
3 in
Overall Height
10-1/2"
Mounting Height
10 1/2 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Plate Thickness
3/8 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Length
5 1/4 in
Outside Slot Spacing - Length
6.125 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Width
4.125 in
Overall Wheel Width
3 in
Inside Slot Spacing - Length
5.25 in
Fits Chest Size
Floor Protective

Details

Caster Sub-Type
Swivel
Features
Floor Protective
Load Rating
2500 lb
Caster Frame Material
Steel
Caster Brake Included
Yes
Replacement Wheel
Mfr. No. P-UY-080X030/075K
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Temp. Range Available
Yes
Number of Wheels
1
Wheel Color
Yellow
Thread Guards
No
Frame Finish
Zinc Plated
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Plate Hole Pattern
A
Caster Brake Type
Directional Lock, No Brake
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Non-Marking
Yes
Item
Plate Caster
Standards
ANSI ICWM
Extended Lead
No
Core Color
Silver
Includes
Trailing End Brake, 4-Position Directional Lock
Tread Shape
Standard
Load Rating Range
Heavy Duty
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Ball
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Lock Type
4-Position Directional Lock
Number of Mounting Holes
4
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Series
P29 Series
ESD Conductive
No
Tread Color
Yellow
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
2500 lb
Caster Mounting Type
Plate
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
2,500 lb
Compatible With
P-UY-080X030/075K
Brake Location
Rear
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, No Brake, Tread Shape Standard
