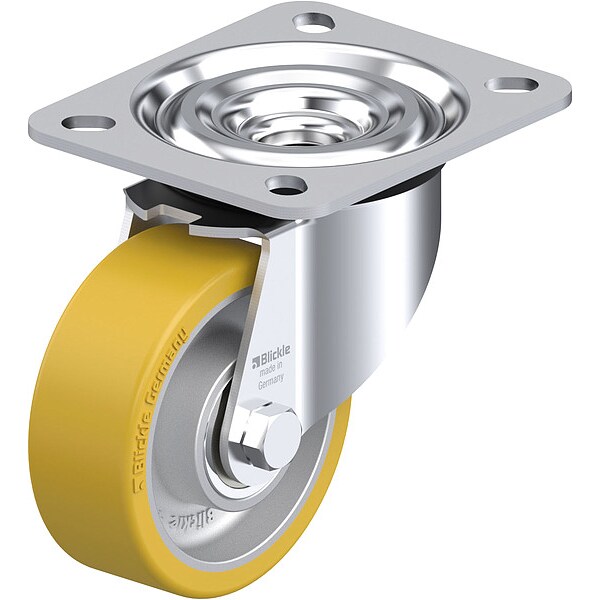

Plate Caster, Swivel, Polyurethane, 4"H

Mfr # L-ALTH 80K
Zoro # G914810891

108.99

Free Shipping & Returns

Key Features

Caster Sub-Type

Swivel

System of Measurement

Metric

Caster Brake Type

No Brake

Wheel Dia.

79 mm

Wheel Width

30 mm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: L-ALTH 80K
Zoro #: G914810891
UPC #: -
Country of Origin: Germany

Dimensions

Wheel Dia.: 79 mm
Wheel Width: 30 mm
Mounting Height: 102 mm
Mounting Plate Thickness: 3 mm
Mounting Bolt Dia.: 9 mm
Outside Slot Spacing - Length: 80 mm
Mounting Plate Length: 100 mm
Overall Wheel Width: 30 mm
Outside Slot Spacing - Width: 60 mm
Inside Slot Spacing - Width: 55 mm
For Axle Dia.: 8 mm
Inside Slot Spacing - Length: 76 mm
Hub Length: 38 mm
Mounting Plate Width: 86 mm

Details

Item: Plate Caster
Caster Sub-Type: Swivel
System of Measurement: Metric
Caster Brake Type: No Brake
Caster Mounting Type: Plate
Wheel Bearing Type: Ball
Wheel Hardness Rating: 92 Shore A
Number of Mounting Holes: 4
Caster Frame Material: Steel
Core Color: Silver
Non-Marking: Yes
Swivel Construction: Kingpin
Frame Finish: Zinc Plated
Number of Wheels: 1
Wheel/Tread Color: Beige
Series: ALTH
Features: Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
For Surface Type: Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Maximum: 70 Degrees C
Wheel Core Material: Aluminum
Wheel Bearing Material: Steel
Includes Thread Guards: No
Swivel Bearing Seal Type: Sealed
Wheel Core Type: Solid
Frame Construction: Pressed
Caster Features: Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Minimum: -20 Degrees C
Mounting Hole Type: Slot
Load Capacity - Maximum: 440 lb
Tread Shape: Standard
Swivel Raceway Type: Double Ball
Mounting Plate Shape: Rectangle
Wheel/Tread Material: Polyurethane
Product Type: Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 79 mm, Wheel Width 30 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
