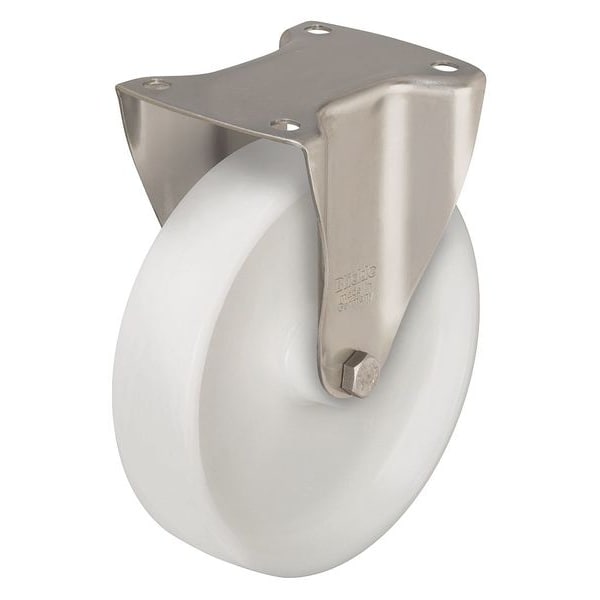

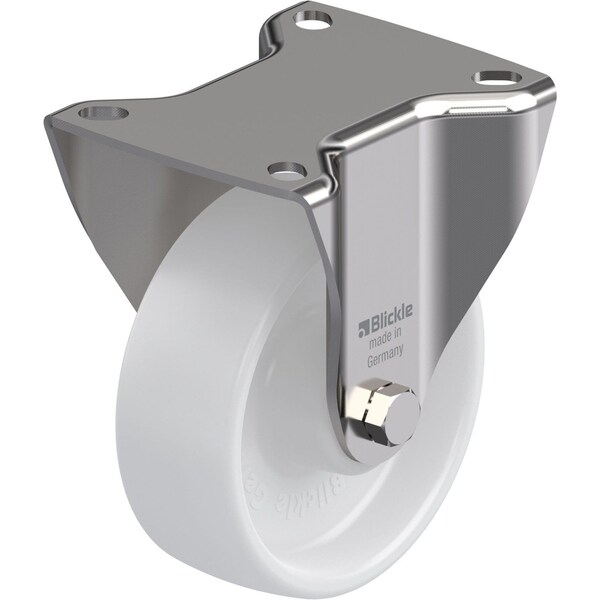

Zoro Select Rgd Plate Caster, Nylon, 4 in., 330 lb. BX-PO 100XR - main

Rgd Plate Caster, Nylon, 4 in., 330 lb.

  • Mfr # BX-PO 100XR

  • Zoro # G0385729

product price:  $39.99
/ea

Key Features

Wheel Dia.
4 in
Inside Bolt Hole Spacing
60 mm x 80 mm
Core Color
White
Mounting Bolt Dia.
9 mm
Caster Temp. Range Available
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BX-PO 100XR
Zoro #
G0385729
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Mounting Bolt Dia.
9 mm
Overall Height
4-15/16in
Wheel Width
1 7/16 in
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Height
4 15/16 in
Mounting Plate Width
3 3/8 in
For Axle Dia.
8 mm
Bolt Hole Spacing - Width
2.375 in
Mounting Plate Thickness
7/64in
Bolt Hole Spacing - Length
3.156 in
Overall Wheel Width
1 7/16 in
Mounting Plate Length
3 15/16 in

Details

Inside Bolt Hole Spacing
60 mm x 80 mm
Core Color
White
Item
Rigid Caster
Caster Temp. Range Available
No
Features
Corrosion Resistant
Caster Frame Material
Stainless Steel
Wheel Color
White
Standards
DIN EN 12564, ISO 14001, ISO 5001, ISO 9001
Outside Bolt Hole Spacing
60 mm x 80 mm
Replacement Wheel
Mfr. No. PO 100/12XR
Frame Finish
Stainless Steel
Number of Wheels
1
Application
Food Service, Medical and Institutional Equipment
Extended Lead
No
Thread Guards
No
Caster Sub-Type
Rigid
Load Rating
330 lb
Caster Plate Hole Pattern
A
Caster Brake Included
No
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
Caster Brake Type
No Brake
Non-Marking
Yes
Wheel Core Material
Nylon
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
Caster Mounting Type
Plate
Tread Color
White
Load Capacity
150 kg
Tread
Standard
Series
BX Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
System of Measurement
Metric
ESD Conductive
No
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
550 lb
Compatible With
PO 100/12XR
Wheel Hardness Rating
70 Shore D
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Rigid, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 7/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
