  11. Plt Cstr, Rgi, Polyurethane, 6 in., 1600 lb.

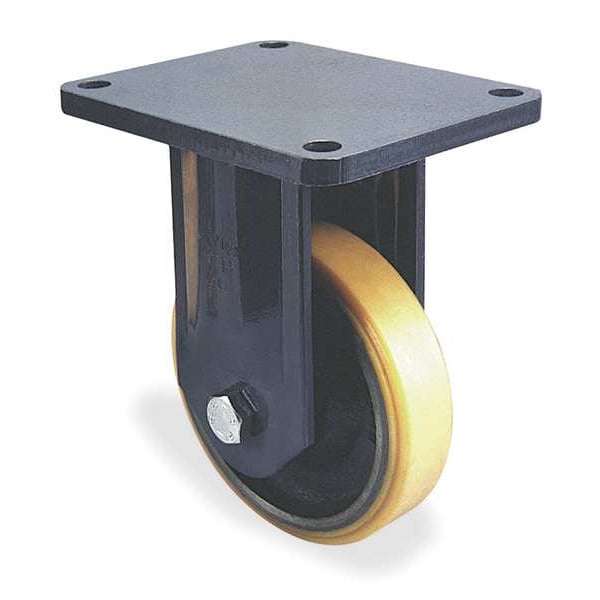

Zoro Select Plt Cstr, Rgi, Polyurethane, 6 in., 1600 lb. TFP150PT2HT22 - main

Plt Cstr, Rgi, Polyurethane, 6 in., 1600 lb.

  • Mfr # TFP150PT2HT22

  • Zoro # G2400395

product price: $188.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TFP150PT2HT22
Zoro #
G2400395
UPC #
-
Country of Origin
United Kingdom

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/2 in
Mounting Height
8 1/2 in
Mounting Plate Size
6 in x 7 7/16 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Overall Height
8-3/8in
Outside Slot Spacing - Width
4.5 in
Overall Wheel Width
38 mm
Inside Slot Spacing - Width
3.375 in
For Axle Dia.
14 mm
Outside Slot Spacing - Length
6.125 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Width
6 in
Mounting Plate Length
7 7/16 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
1600 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Tan
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/2 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Extended Lead
No
Caster Brake Included
No
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. 150 PT2H
Application
Kingpinless Towable Casters
Frame Finish
Enamel
Thread Guards
No
Wheel Color
Tan
Standards
ANSI ICWM
Swivel Lock Type
No Lock Included
Wheel Core Material
Iron
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Load Capacity - Maximum
1,600 lb
Compatible With
150 PT2H
Mounting Plate Shape
Rectangle
For Surface Type
Ceramic, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-22 Degrees to 176 Degrees F

Description

Rigid, Plate Caster, Load Rating 1600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
