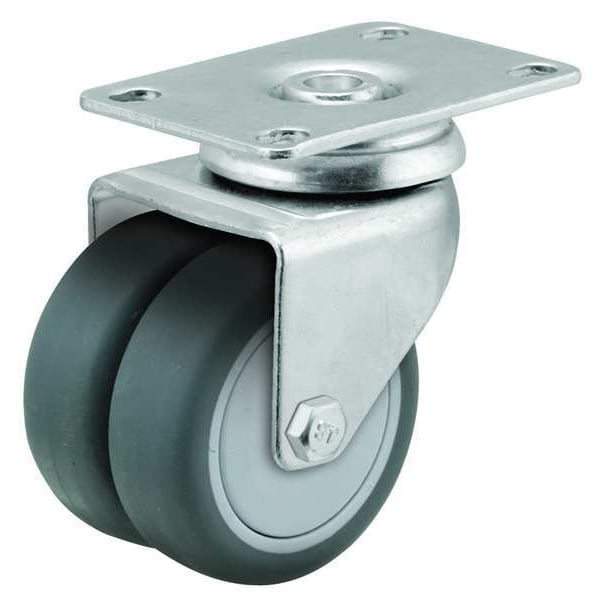

Colson 2" X 1-21/32" Non-Marking Rubber (Grey) Swivel Caster, No Brake, Loads Up To 200 lb DW02GRP100TLHK01 - main

2" X 1-21/32" Non-Marking Rubber (Grey) Swivel Caster, No Brake, Loads Up To 200 lb

  • Mfr # DW02GRP100TLHK01

  • Zoro # G8986853

product price:  $29.25
/ea

Key Features

Caster Stem Type
Top Plate
Wheel Dia.
2 in
Inside Bolt Hole Spacing
1-5/8 in X 2 in
Caster Temp. Range Available
Yes
Core Color
Black
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DW02GRP100TLHK01
Zoro #
G8986853
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
2 in
Overall Height
2-29/32in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Mounting Plate Size
2-5/8in x 3in
Mounting Height
74MM
Mounting Plate Width
66 1/2 mm
For Axle Dia.
5/16 in
Overall Wheel Width
1 21/32 in
Inside Slot Spacing - Length
56 mm
Inside Slot Spacing - Width
46.5 mm
Outside Slot Spacing - Length
61.5 mm
Mounting Plate Thickness
3 mm
Mounting Plate Length
77 mm
Outside Slot Spacing - Width
51.5 mm

Details

Caster Stem Type
Top Plate
Inside Bolt Hole Spacing
1-5/8 in X 2 in
Caster Temp. Range Available
Yes
Core Color
Black
Caster Plate Hole Pattern
A
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Caster Brake Included
No
Non-Marking
Yes
Load Rating
200 lb
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
1-31/32 in X 2-13/32 in
Number of Wheels
2
Item
Swivel Caster
Wheel Color
Gray
Application
Patient Lifts, Computer Equipment, Lab Equipment
Caster Brake Type
No Brake
Includes Thread Guards
Yes
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel Core Material
Polypropylene
Wheel Bearing Type
Ball
Swivel Raceway Type
Double Ball
Load Rating Range
0 to 299 lb
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Wheel/Tread Color
Grey
Wheel Hardness Rating
70 Shore A
Load Capacity - Maximum
200 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Features
Low Profile
Operating Temperature Range
-45 Degrees to 180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width Not Applicable, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
