Shop ZORO SELECT

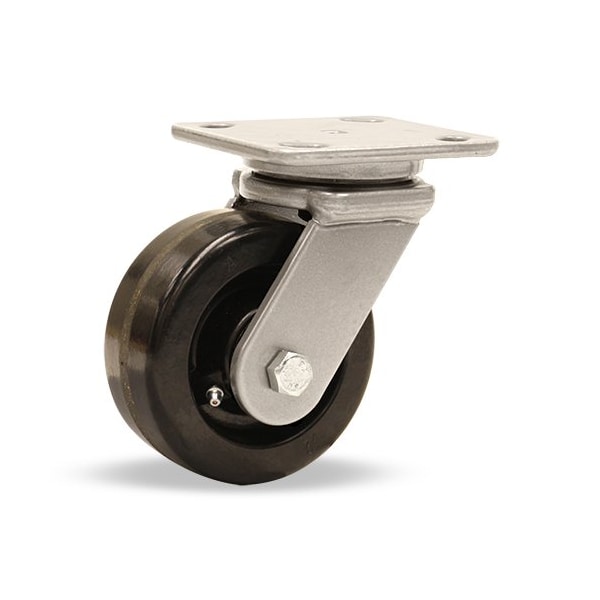

Plte Caster, Swvl, Phenolic, 5", 1000 lb.

  • Mfr # S-WH-5P

  • Zoro # G9262038

product price:
$
100.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
No Lock Included
Wheel Dia.
5 in
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-WH-5P
Zoro #
G9262038
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Plate Size
4 in x 5 in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in

Details

Item
Plte Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
No Lock Included
Load Rating
1000 lb
Core Color
Black
Number of Wheels
1
Outside Bolt Hole Spacing
2 5/8 in x 3 5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Non-Marking
Yes
Caster Temp. Range Available
Yes
Replacement Wheel
23EL40
Includes
Spanner Bushing
Thread Guards
No
Caster Frame Material
Steel
Wheel Color
Black
Application
All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Frame Finish
Enamel
Caster Brake Included
No
Extended Lead
No
Standards
ICWM
Swivel Lock Type
No Lock Included
Wheel Core Material
Phenolic
Tread Shape
Standard
Swivel Raceway Type
Single Ball
Load Rating Range
Medium
Wheel Hardness Rating
90 Shore D
Wheel Bearing Type
Roller
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-50 Degrees F

Description

Swivel, Plte Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Tread Shape Standard
