  11. Pneumatic Caster, 350 lb. Load, Swivel
Zoro Select Pneumatic Caster, 350 lb. Load, Swivel P21S-P080WK-14-H10 - main

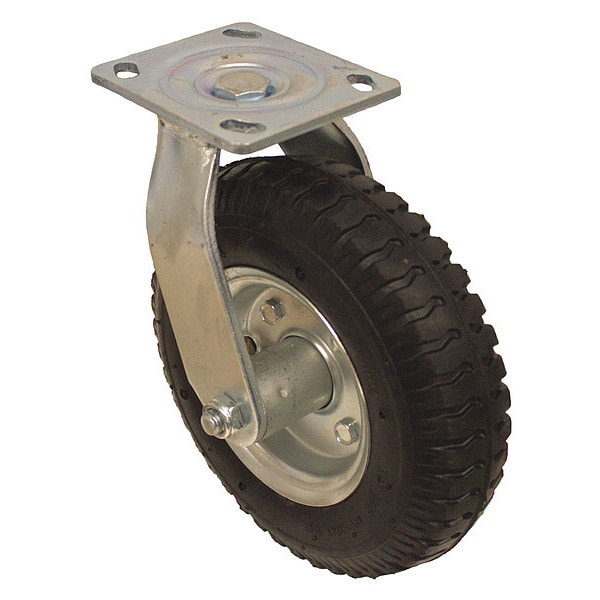

Pneumatic Caster, 350 lb. Load, Swivel

  • Mfr # P21S-P080WK-14-H10

  • Zoro # G1610994

product price: $58.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber Pneumatic
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-P080WK-14-H10
Zoro #
G1610994
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 3/4 in
Mounting Height
10 1/8 in
Mounting Plate Size
4 in x 4-1/2 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6-5/8 in
Hub Width
3 in
Tire Rim Dia.
4 in
Tire Thickness
2 1/2 in
Overall Height
10-1/8in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 3/4 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber Pneumatic
Caster Brake Type
No Brake
Load Rating
210 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Ply
4
Extended Lead
Yes
Replacement Wheel
Mfr. No. P 200/20K
Tread
Ribbed
Wheel Type
Pneumatic
Caster Temp. Range Available
Yes
Tread Color
Black
Frame Finish
Zinc Plated
Hub Type
Centered
Hub Color
Silver
Caster Brake Included
No
Application
Retail, Industrial, Commercial
Hub Material
Steel
Standards
RoHS, ICWM, NSF
Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Operating Temperature Range
-20 Degrees to 180 Degrees F
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Soft
Series
P21 Series
Load Capacity
200 lb
Accessories
Optional: P-DL21-14 (Directional Lock)
Wheel Core Material
Pressed Steel
ESD Conductive
No
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity - Maximum
295 lb
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 210 lb, Wheel Dia. 8 in, Wheel Width 2 3/4 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
