  11. Pneumatic Caster, 8-21/32" Wheel dia.
Zoro Select Pneumatic Caster, 8-21/32" Wheel dia. L-P 220R-ST - main

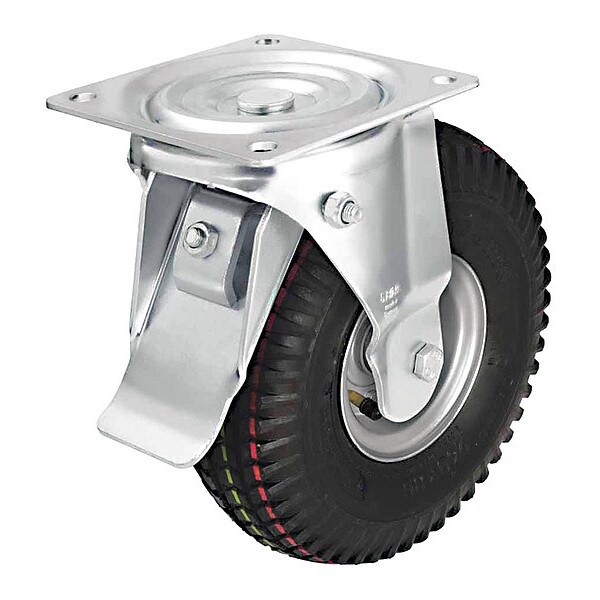

Pneumatic Caster, 8-21/32" Wheel dia.

  • Mfr # L-P 220R-ST

  • Zoro # G2142684

product price: $134.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
Total Lock
Wheel Dia.
8 11/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-P 220R-ST
Zoro #
G2142684
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 11/16 in
Wheel Width
2 9/16 in
Mounting Height
10 1/4 in
Mounting Plate Size
110 mm x 140 mm
Mounting Plate Thickness
4 mm
Mounting Bolt Dia.
3/8 in
Hub Width
2-15/16 in
Tire Thickness
2 1/2 in
Overall Height
10in
Tire Rim Dia.
4 in
Swivel Radius
177 mm
Outside Slot Spacing - Width
80 mm
Mounting Plate Width
110 mm
Overall Wheel Width
2 9/16 in
For Axle Dia.
12 mm
Bolt Hole Spacing - Length
4.125 in
Inside Slot Spacing - Width
75 mm
Mounting Plate Length
140 mm

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
Total Lock
Load Rating
220 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel Hardness Rating
60 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
80 mm x 105 mm
Inside Bolt Hole Spacing
75 mm x 105 mm
Caster Plate Hole Pattern
C
Frame Finish
Zinc Plated
Hub Type
Centered
Hub Material
Steel
Caster Temp. Range Available
Yes
Tread
Ribbed
Tread Color
Black
Ply
2
Hub Color
Silver
Caster Brake Included
Yes
Includes
Stop-Top Total-Lock Brake
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. P 220/20-75R
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Construction
Kingpin
Operating Temperature Range
-20 Degrees to 120 Degrees F
Load Rating Range
Light-Duty
Wheel/Tread Hardness Rating
Soft
Extended Lead
No
Wheel Type
Pneumatic
Wheel Core Material
Pressed Steel
Load Capacity
100 kg
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Series
L Series
Load Capacity - Maximum
220 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Brake Location
Face
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Bearing Material
Steel

Description

Swivel, Plate Caster, Load Rating 220 lb, Wheel Dia. 8 11/16 in, Wheel Width 2 9/16 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
