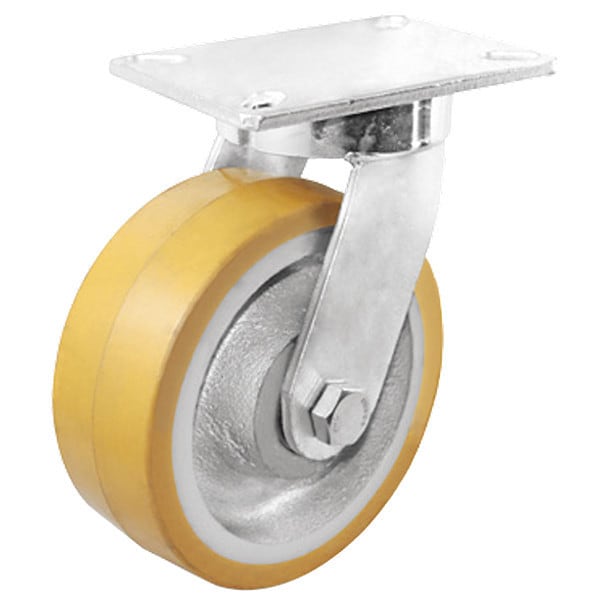

Zoro Select Plate Caster, 2000 lb. Load, Yellow Wheel P27S-UY060K-16 - main

Plate Caster, 2000 lb. Load, Yellow Wheel

  • Mfr # P27S-UY060K-16

  • Zoro # G5618693

product price:  $142.99
/ea
Free Shipping & Returns

Key Features

Caster Temp. Range Available
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Gray
Frame Finish
Zinc Plated
Standards
ANSI ICWM
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P27S-UY060K-16
Zoro #
G5618693
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/2in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Wheel Width
3 in
Swivel Radius
4-3/8 in
Mounting Height
7 1/2 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/4 in
Mounting Plate Width
4 1/2 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Inside Slot Spacing - Width
2.438 in
Bolt Hole Spacing - Length
2.438 in
Mounting Plate Thickness
0.315 in

Details

Caster Temp. Range Available
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Gray
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Wheel Color
Yellow
Load Rating
2000 lb
Includes
Complete Caster
Caster Plate Hole Pattern
A
Caster Brake Type
No Brake
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Extended Lead
No
Features
Corrosion Resistance, Floor Protective
Item
Kingpinless Swivel Caster
Caster Frame Material
Steel
Number of Wheels
1
Non-Marking
Yes
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-UY-060x030/075K
Caster Sub-Type
Swivel
Thread Guards
No
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpinless
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Heavy Duty
Wheel Core Material
Cast Iron
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Caster Mounting Type
Plate
ESD Conductive
No
Series
P27 Series
Tread
Standard
Load Capacity
2000 lb
Accessories
Optional: P-DL27-16 (Directional Lock)
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread Color
Yellow
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Hardness Rating
92 Shore A
Compatible With
P-UY-060X030/075K
Load Capacity - Maximum
2,000 lb
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
