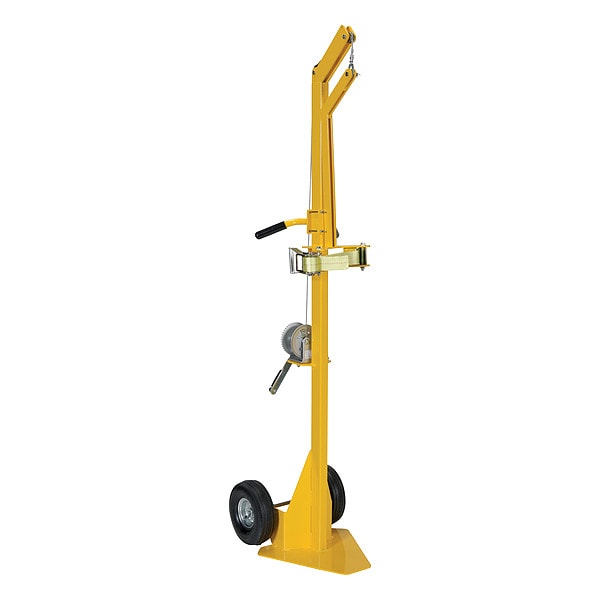

Portable Cylinder Lifter, 300 lb. Load Capacity

  • Mfr # CYL-LT-1-PN

  • Zoro # G2582697

product price:  $548.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
79 in
Overall Length
36 in
Overall Width
23 in
Material
Steel
Color
Yellow
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CYL-LT-1-PN
Zoro #
G2582697
UPC #
691215064996
Country of Origin
United States

Dimensions

Overall Height
79 in
Overall Length
36 in
Overall Width
23 in
Wheel Diameter
10"
Platform Length
23.375"
Rear Wheel Dia.
10 in
Lifting Height Max.
9 in
Overall HxWxD
79 in x 23 in x 17 1/2 in
Caster Wheel Width
3 1/2 in
Nose Plate Width
16 in
Axle-Mounted Wheel Dia.
10 in
Max. Lifting Height
14 in
For Maximum Container Diameter
11 1/2 in
Minimum Lifting Height
36 7/8 in
Handle Height
79 5/16 in
Overall Depth
17 1/2 in
Axle-Mounted Wheel Width
3 1/2 in
Nose Plate Depth
18 in
Overall Height - Cylinder Lowered
36 1/2 in
Overall Height - Cylinder Raised
49 in
For Maximum Cylinder Diameter
11 1/2 in
Caster Width
3 1/2 in

Details

Material
Steel
Color
Yellow
Load Capacity
300 lb
Item
Manual Cylinder Platform Lift Truck
Handle Type
Single
Assembled
Yes
Lift Mechanism
Cable
Caster Wheel Type
Pneumatic
Includes
Strap Mechanism to Secure Cylinder
Powered By
Hand Winch Lift
Caster Wheel Material
Pneumatic Rubber
Frame Material
Steel
Frame Type
Flat Back
Non-Marking Axle-Mounted Wheels
No
Includes Lift Ring
With Lift Ring
Cylinder Capacity
1
Includes Stair Climber
Without Stair Climber
Caster/Wheel Configuration
(2) Rigid
Brake Type
No Caster Brake
Axle-Mounted Wheel/Tread Material
Rubber
Securing Mechanism
Strap
Cylinder Orientation
Single
Features
Easily Move and Lift Cylinders
Compatible with Product Type
Cylinder
Nose Plate Profile
Standard
Frame Finish
Powder Coated
Nose Plate Material
Steel
Includes Foot Assist
Without Foot Assist
Weight
102 lb
Includes Firewall
No
Axle-Mounted Wheel Type
Pneumatic
Caster/Wheel Mounting Location
Standard
Includes Lever Pushoff
Without Lever Pushoff
Nose Plate Type
Solid Tapered
Caster Wheel/Tread Material
Rubber
Base Style
Fixed
For Use With
Cylinder is secured to cart with manual ratchet strap.
Wheel Material
Pneumatic

Description

1, Overall Height 79 in, Overall Width 23 in, Overall Depth 23 in, Load Capacity 300 lb, Securing Mechanism Strap, Caster/Wheel Configuration (2) Rigid, Axle-Mounted Wheel Type Pneumatic, Axle-Mounted Wheel/Tread Material Rubber, Axle-Mounted Wheel Dia. 10 in, Handle Type Single-Handle, Includes Firewall No, Includes Foot Assist Without Foot Assist, Includes Lever Pushoff Without Lever Pushoff, Includes Lift Ring Without Lift Ring, Frame Type Flat Back, Frame Material Steel
