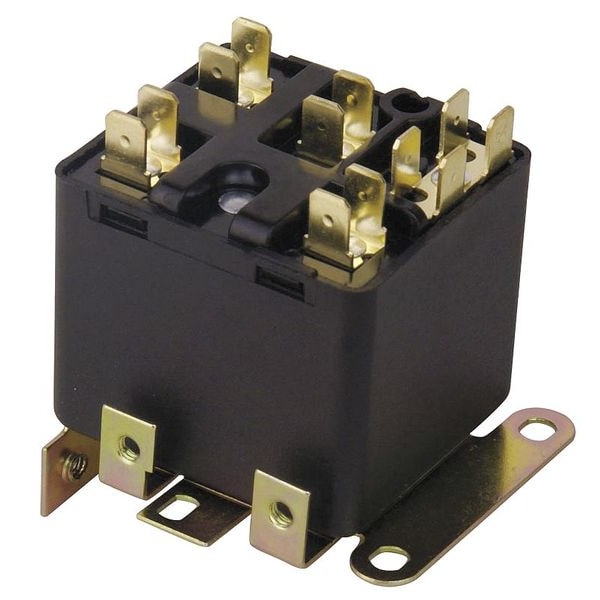

Potential Relay, Potential, Single, 6

  • Mfr # 5MLZ0

  • Zoro # G1933032

product price:
$
15.45
/ea

Key Features

Application
For Starting Single Phase Capacitor Type Motors in Air Conditioning and Refrigeration Hermetic Compressors, Waste Dispensers and Submersible Pumps
Phase
Single
Frequency
60 Hz
N.O. Output (Amps)
50 A
Type
Potential
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5MLZ0
Zoro #
G1933032
UPC #
190735529317
Country of Origin
China

Dimensions

Depth
1 3/4 in
Height
2 in
Width
2 in
Body Width
2 in
Mounting Hole Diameter
1/4 in
Body Height
2 in
Overall Height
1 11/16 in
Overall Width
2 in
Overall Depth
1 13/16 in
Body Depth
1 3/4 in

Details

Application
For Starting Single Phase Capacitor Type Motors in Air Conditioning and Refrigeration Hermetic Compressors, Waste Dispensers and Submersible Pumps
Phase
Single
Frequency
60 Hz
Item
Potential Relay
N.O. Output (Amps)
50 A
Type
Potential
Hz
60
Response Time (ms)
25 msec
Temp. Rating (F)
-40 to 160
Pick Up
185 to 200
% Volts Unbalance
+/-10%
HP
6
Contact Rating (Amps)
35 A
Agency Compliance
cULus
Drop Out
105 to 40
Hold
375
For Use With
HVAC Compressors and Motors
Input Voltage
375V AC
Standards
cULus Recognized
Mounting Style
Bottom Flange, Side Flange
Number of Pins
12
Minimum Drop Out Voltage
40V AC
Instant Restart
No Instant Restart
Electrical Connection Type
Screw Terminals
Coil Voltage
375V AC
Sealing
Hermetically Sealed
Minimum Pick Up Voltage
185V AC
Contact Form
SPST
Relay Operation
Electromechanical
Minimum Operating Temperature
-40 Degrees F
Contact Rating (AC)
35 A @ 277V
Maximum Operating Temperature
160 Degrees F
Electrical Operating Durability
100,000
Voltage Sensing
Not Voltage Sensing
Response Time
25 msec
Relay Type
Mechanical Potential Relay
Base Shape
Irregular
Housing Material
FR50PA66
Weight
5.08 oz
Contact Material
AgCdo12/cu
Mounting Orientation
Any Position
OEM Replacement Part Number
LT551
Maximum Pick-Up Voltage
200V AC
Maximum Drop Out Voltage
105V AC

Description

Potential Relay, Pick-Up Voltage Setting Adjustability Not Applicable, Minimum Pick Up Voltage 185V AC, Maximum Pick-Up Voltage 200V AC, Maximum Drop Out Voltage 105V AC, Coil Voltage 375V AC, Overall Height 1 11/16 in, Overall Width 2 in, Overall Depth 1 13/16 in, Compatible with Manufacturer Model Number Not Applicable, Contact Form SPST, Relay Type Mechanical Potential Relay, Maximum Time Setting Not Applicable, Minimum Time Setting Not Applicable, Voltage Sensing Not Voltage Sensing
